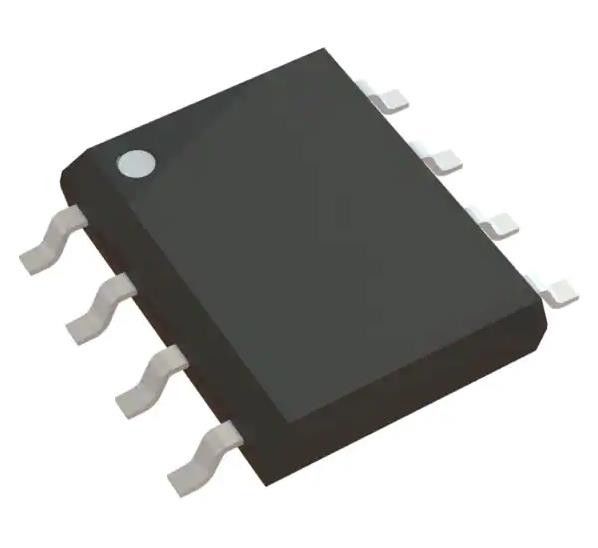

BTS5090-1EJA Power Switch/Driver 1:1 N-Channel 3A PG-DSO-8-43-EP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BTS5090-1EJA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Ratio - Input:Output: | 0.042361111 |
|---|---|---|---|
| Voltage - Load: | 5V ~ 28V | Current - Output (Max): | 3A |
| Rds On (Typ): | 90mOhm | Operating Temperature: | -40°C ~ 150°C (TJ) |
Product Description
BTS5090-1EJA Power Switch/Driver 1:1 N-Channel 3A PG-DSO-8-43-EP
Specifications of BTS5090-1EJA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 90mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-DSO-8-43-EP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Base Product Number | BTS5090 |
Features of BTS5090-1EJA
• One channel device
• Very low stand-by current
• 3.3 V and 5 V compatible logic inputs
• Electrostatic discharge protection (ESD)
• Optimized electromagnetic compatibility
• Logic ground independent from load ground
• Very low power DMOS leakage current in OFF state
• Green product (RoHS compliant)
• AEC qualified
Applications of BTS5090-1EJA
• Suitable for resistive, inductive and capacitive loads
• Replaces electromechanical relays, fuses and discrete circuits
• Most suitable for loads with high inrush current, such as lamps
