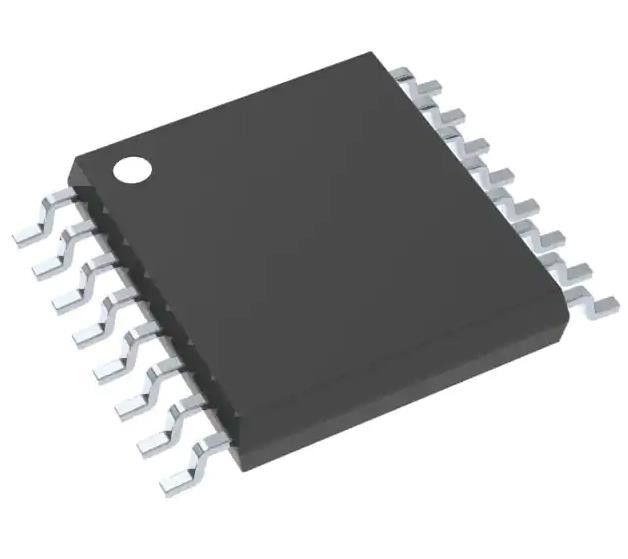

ADS7828E/250 12 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7828E/250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 50k |
|---|---|---|---|
| Number Of Inputs: | 8 | Data Interface: | I²C |
| Ratio - S/H:ADC: | 1:01 | Number Of A/D Converters: | 1 |
| Voltage - Supply, Analog: | 2.7V ~ 3.6V, 5V | Voltage - Supply, Digital: | 2.7V ~ 3.6V, 5V |
Product Description
ADS7828E/250 12 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Specifications of ADS7828E/250
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | I²C |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7828 |
Features of ADS7828E/250
● 8-CHANNEL MULTIPLEXER
● 50kHz SAMPLING RATE
● NO MISSING CODES
● 2.7V TO 5V OPERATION
● INTERNAL 2.5V REFERENCE
● I2C INTERFACE SUPPORTS:Standard, Fast, and High-Speed Modes
● TSSOP-16 PACKAGE
Applications of ADS7828E/250
● VOLTAGE-SUPPLY MONITORING
● ISOLATED DATA ACQUISITION
● TRANSDUCER INTERFACES
● BATTERY-OPERATED SYSTEMS
● REMOTE DATA ACQUISITION
