AD1674BD 12 Bit Analog to Digital Converter 1 Input 1 SAR 28-CDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD1674BD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 100k |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Single Ended |
| Data Interface: | Parallel | Ratio - S/H:ADC: | 1:01 |
| Number Of A/D Converters: | 1 | Voltage - Supply, Analog: | ±11.4V ~ 16.5V |
Product Description

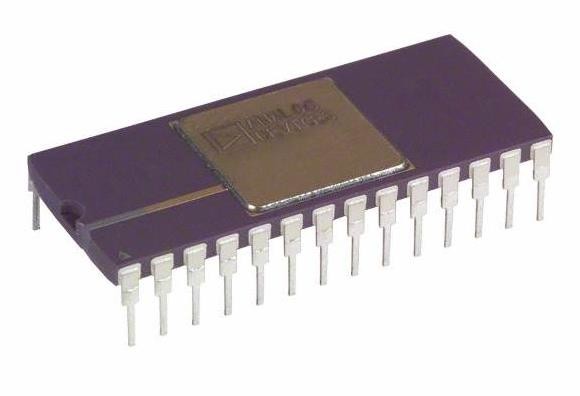

AD1674BD 12 Bit Analog to Digital Converter 1 Input 1 SAR 28-CDIP
Specifications of AD1674BD
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
| Base Product Number | AD1674 |
Features of AD1674BD
* Complete Monolithic 12-Bit 10 ms Sampling ADC
* On-Board Sample-and-Hold Amplifier
* Industry Standard Pinout
* 8- and 16-Bit Microprocessor Interface
* AC and DC Specified and Tested
* Unipolar and Bipolar Inputs
* 65 V, 610 V, 0 V–10 V, 0 V–20 V Input Ranges
* Commercial, Industrial and Military Temperature Range Grades
* MIL-STD-883 and SMD Compliant Versions Available
Applications of AD1674BD
* The AD1674 is a complete, multipurpose, 12-bit analog-todigital converter, consisting of a user-transparent onboard sample-and-hold amplifier (SHA), 10 volt reference, clock and three-state output buffers for microprocessor interface.
* The AD1674 is pin compatible with the industry standard AD574A and AD674A, but includes a sampling function while delivering a faster conversion rate. The on-chip SHA has a wide input bandwidth supporting 12-bit accuracy over the full Nyquist bandwidth of the converter.
