TUSB8041RGCR USB Hub Controller USB 3.0 USB, GPIO, I²C, SMBus Interface
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TUSB8041RGCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Protocol: | USB | Interface: | USB, GPIO, I²C, SMBus |
|---|---|---|---|
| Standards: | USB 3.0 | Voltage - Supply: | 1.1V, 3.3V |
| Operating Temperature: | 0°C ~ 70°C | Function: | Hub Controller |
Product Description
TUSB8041RGCR USB Hub Controller USB 3.0 USB, GPIO, I²C, SMBus Interface
Specifications of TUSB8041RGCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Protocol | USB |
| Function | Hub Controller |
| Interface | USB, GPIO, I²C, SMBus |
| Standards | USB 3.0 |
| Voltage - Supply | 1.1V, 3.3V |
| Current - Supply | - |
| Operating Temperature | 0°C ~ 70°C |

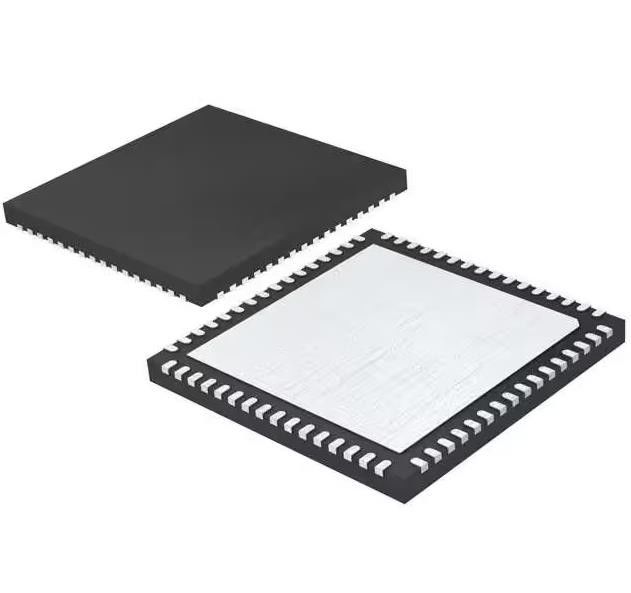

| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| Base Product Number | TUSB8041 |
Features of TUSB8041RGCR
• Four Port USB 3.0 Hub
• USB 2.0 Hub Features
– Multi Transaction Translator (MTT) Hub: Four Transaction Translators
– Four Asynchronous Endpoint Buffers Per Transaction Translator
• Supports Battery Charging
– CDP Mode (Upstream Port Connected)
– DCP Mode (Upstream Port Unconnected)
– DCP Mode Complies with Chinese Telecommunications Industry Standard YD/T 1591-2009
– D+/D- Divider Mode
• Supports Operation as a USB 3.0 or USB 2.0 Compound Device
• Per Port or Ganged Power Switching and OverCurrent Notification Inputs
• OTP ROM, Serial EEPROM or I2C/SMBus Slave Interface for Custom Configurations:
– VID and PID
– Port Customizations
– Manufacturer and Product Strings (not by OTPROM)
– Serial Number (not by OTP ROM)
• Application Feature Selection Using Pin Selection or EEPROM/ or I2C/SMBus Slave Interface
• Provides 128-Bit Universally Unique Identifier (UUID)
• Supports On-Board and In-System OTP/EEPROM Programming Via the USB 2.0 Upstream Port
• Single Clock Input, 24-MHz Crystal or Oscillator
• No Special Driver Requirements; Works Seamlessly on any Operating System with USB Stack Support
• 64-Pin QFN Package (RGC)
Applications of TUSB8041RGCR
• Computer Systems
• Docking Stations
• Monitors
• Set-Top Boxes
