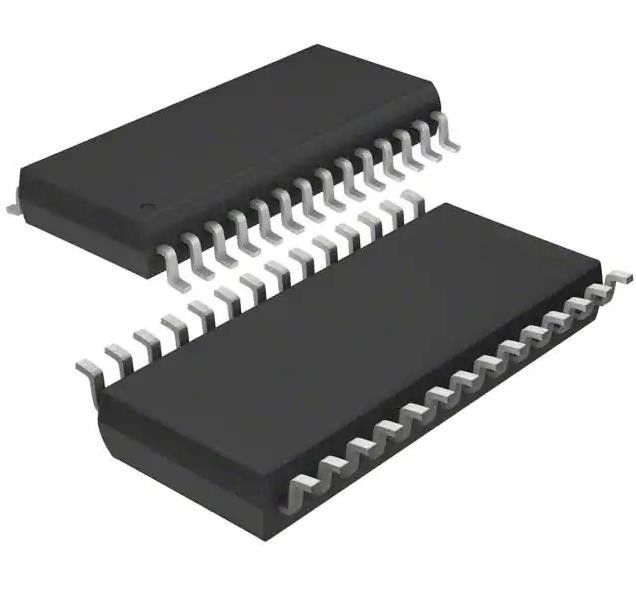

TRS3243ECPWR 3/5 Transceiver Full RS232 28-TSSOP 0°C ~ 70°C 3V ~ 5.5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TRS3243ECPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Transceiver | Receiver Hysteresis: | 500 MV |
|---|---|---|---|
| Data Rate: | 500kbps | Voltage - Supply: | 3V ~ 5.5V |
| Operating Temperature: | 0°C ~ 70°C | Number Of Drivers/Receivers: | 3/5 |
Product Description
TRS3243ECPWR 3/5 Transceiver Full RS232 28-TSSOP 0°C ~ 70°C 3V ~ 5.5V
Specifications of TRS3243ECPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 3/5 |
| Duplex | Full |
| Receiver Hysteresis | 500 mV |
| Data Rate | 500kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | TRS3243 |
Features of TRS3243ECPWR
• Single-chip and single-supply interface for IBM™ PC/AT™ serial port
• ESD Protection for RS-232 bus pins
– ±15-kV Human-body model (HBM)
– ±8-kV IEC61000-4-2, Contact discharge
– ±15-kV IEC61000-4-2, Air-gap discharge
• Meets or exceeds requirements of TIA/EIA-232-F and ITU v.28 standards
• Operates with 3-V to 5.5-V VCC supply
• Always-active noninverting receiver output (ROUT2B)
• Designed to transmit at a data rate up to 500 kbit/s
• Low standby current: 1 μA typical
• External capacitors: 4 × 0.1 μF
• Accepts 5-V logic input with 3.3-V supply
• Designed to be interchangeable with industry standard '3243E devices
• Serial-mouse driveability
• Auto-powerdown feature to disable driver outputs when no valid RS-232 signal is sensed
• Package options include plastic small-outline (DW), shrink small-outline (DB), and thin shrink small-outline (PW)
Applications of TRS3243ECPWR
• Battery-powered systems
• Personel electronics
• Notebooks
• Laptops
• Palmtop PCs
• Hand-held equipment
