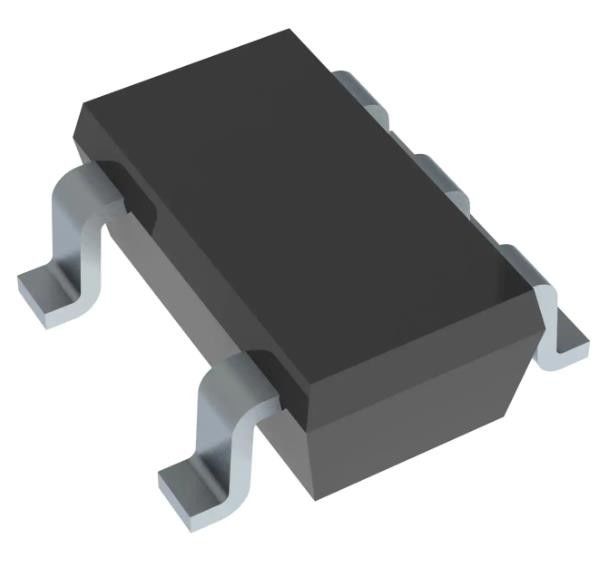

SN74AHC1G09DBVR AND Gate IC 1 Channel Open Drain SOT-23-5 2V ~ 5.5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AHC1G09DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Open Drain | Number Of Circuits: | 1 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 2V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA | Input Logic Level - Low: | 0.5V ~ 1.65V |
| Input Logic Level - High: | 1.5V ~ 3.85V | Max Propagation Delay @ V, Max CL: | 7.5ns @ 5V, 50pF |
Product Description
SN74AHC1G09DBVR AND Gate IC 1 Channel Open Drain SOT-23-5 2V ~ 5.5V
Specifications of SN74AHC1G09DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74AHC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | Open Drain |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | -, 8mA |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 74AHC1G09 |
Features of SN74AHC1G09DBVR
• Operating Range from 2 V to 5.5 V
• Maximum tpd of 6 ns at 5 V
• ±8-mA Output Drive at 5 V
• Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22:
– 2000-V Human-Body Model (A114-A)
– 1000-V Charged-Device Model (C101)
Applications of SN74AHC1G09DBVR
• Barcode Scanners
• Cable Solutions
• E-Books
• Embedded PCs
• Field Transmitter: Temperature or Pressure Sensors
• Fingerprint Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• Network-Attached Storage (NAS)
• Server Motherboard and PSU
• Software Defined Radios (SDR)
• TV: High Definition (HDTV), LCD, and Digital
• Video Communications Systems
• Wireless Data Access Cards, Headsets,Keyboards, Mice, and LAN Cards
