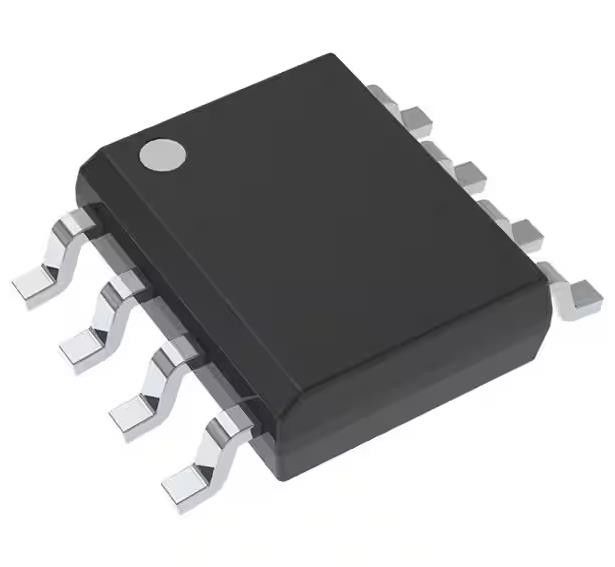

SN65HVD233DR 1/1 Transceiver Half CANbus 8-SOIC 3V ~ 3.6V -40°C ~ 125°C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN65HVD233DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Protocol: | CANbus | Number Of Drivers/Receivers: | 1/1 |
|---|---|---|---|
| Receiver Hysteresis: | 100 MV | Data Rate: | 1Mbps |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -40°C ~ 125°C |
Product Description
SN65HVD233DR 1/1 Transceiver Half CANbus 8-SOIC 3V ~ 3.6V -40°C ~ 125°C
Specifications of SN65HVD233DR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 100 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | 65HVD233 |
Features of SN65HVD233DR
• Single 3.3-V Supply Voltage
• Bus Pins Fault Protection Exceeds ±36 V
• Bus Pins ESD Protection Exceeds ±16 kV HBM
• Compatible With ISO 11898-2
• GIFT/ICT Compliant
• Data Rates up to 1 Mbps
• Extended –7 V to 12 V Common Mode Range
• High-Input Impedance Allows for 120 Nodes
• LVTTL I/Os are 5-V Tolerant
• Adjustable Driver Transition Times for Improved Emissions Performance
• Unpowered Node Does Not Disturb the Bus
• Low Current Standby Mode, 200-μA (Typical)
• SN65HVD233: Loopback Mode
• SN65HVD234: Ultra Low Current Sleep Mode
– 50-nA Typical Current Consumption
• SN65HVD235: Autobaud Loopback Mode
• Thermal Shutdown Protection
• Power up and Down With Glitch-Free Bus Inputs and Outputs
– High-Input Impedance With Low VCC
– Monolithic Output During Power Cycling
Applications of SN65HVD233DR
• Industrial Automation, Control, Sensors, and Drive Systems
• Motor and Robotic Control
• Building and Climate Control (HVAC)
• Backplane Communication and Control
• CAN Bus Standards such as CANopen,DeviceNet, CAN Kingdom, NMEA 2000,SAE J1939
