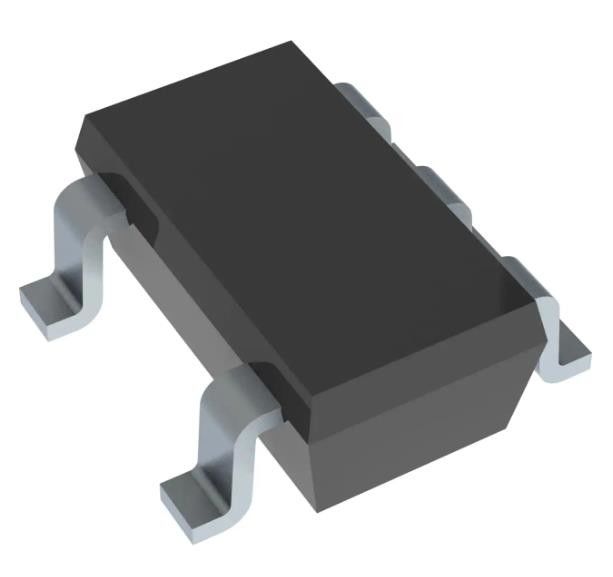

LMC7101QM5X/NOPB General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMC7101QM5X/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Output Type: | Rail-to-Rail |
|---|---|---|---|
| Slew Rate: | 1.1V/µs | Gain Bandwidth Product: | 1.1 MHz |
| Current - Input Bias: | 1 PA | Voltage - Input Offset: | 110 µV |
| Current - Supply: | 800µA | Current - Output / Channel: | 50 MA |
Product Description
LMC7101QM5X/NOPB General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Specifications of LMC7101QM5X/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.1V/µs |
| Gain Bandwidth Product | 1.1 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 110 µV |
| Current - Supply | 800µA |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 15.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMC7101 |
Features of LMC7101QM5X/NOPB
* Tiny 5-Pin SOT-23 Package Saves Space_Typical Circuit Layouts Take Half the Space of 8-Pin SOIC Designs
* Ensured Specifications at 2.7-V, 3-V, 5-V, 15-VSupplies
* Typical Supply Current 0.5 mA at 5 V
* Typical Total Harmonic Distortion of 0.01% at 5 V
* 1-MHz Gain Bandwidth
* Similar to Popular LMC6482 and LMC6484
* Rail-to-Rail Input and Output
* Temperature Range -40'C to 125C(LMC7101Q-Q1)
Applications of LMC7101QM5X/NOPB
* Mobile Communications
* Notebooks and PDAs
* Battery Powered Products
* Sensor Interface
* Automotive Applications (LMC7101Q-Q1)
