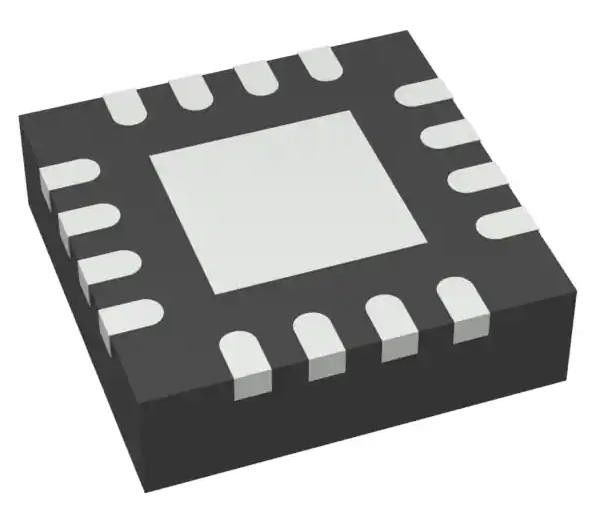

DAC80508MRTET 16 Bit Digital to Analog Converter 8 16-WQFN (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC80508MRTET |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 16 | Number Of D/A Converters: | 8 |
|---|---|---|---|
| Settling Time: | 5µs (Typ) | Voltage - Supply, Analog: | 2.7V ~ 5.5V |
| Voltage - Supply, Digital: | 1.7V ~ 5.5V | INL/DNL (LSB): | ±0.5, ±0.5 |
Product Description
DAC80508MRTET 16 Bit Digital to Analog Converter 8 16-WQFN (3x3)
Specifications of DAC80508MRTET
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 16 |
| Number of D/A Converters | 8 |
| Settling Time | 5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Mounting Type | Surface Mount |
| Base Product Number | DAC80508 |
Features of DAC80508MRTET
• Performance
– INL: ±1 LSB Maximum at 16-Bit Resolution
– TUE: ±0.1% of FSR Maximum
• Integrated 2.5 V Precision Internal Reference
– Initial Accuracy: ±5 mV Maximum
– Low Drift: 2 ppm/°C Typical, DAC80508
• High Drive Capability: 20 mA with 0.5 V from Supply Rails
• Flexible Output Configuration
– User Selectable Gain: 2, 1 or ½
– Reset to Zero Scale or Midscale
– Clear Output Function: DACx0508C
• Wide Operating Range
– Power Supply: 2.7 V to 5.5 V
– Temperature Range: –40˚C to 125˚C
• 50 MHz SPI Compatible Serial Interface
– 1.7 V to 5.5 V Operation
– Daisy Chain Operation
– CRC Error Check
• Low Power: 0.6 mA/Channel at 5.5 V
• Small Packages:
– 3 mm × 3 mm, 16-Pin WQFN
– 2.4 mm x 2.4 mm, 16-Pin DSBGA
Applications of DAC80508MRTET
• Optical Networking
• Wireless Infrastructure
• Industrial Automation
• Data Acquisition Systems
