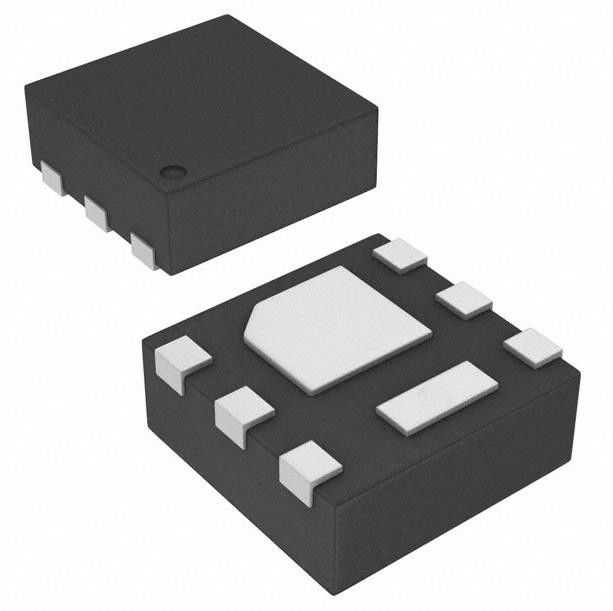

CSD87502Q2T Mosfet Array 30V 5A 2.3W Surface Mount 6-WSON (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD87502Q2T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Configuration: | 2 N-Channel (Dual) | FET Feature: | Logic Level Gate, 5V Drive |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 30V | Current - Continuous Drain (Id) @ 25°C: | 5A |
| Rds On (Max) @ Id, Vgs: | 32.4mOhm @ 4A, 10V | Vgs(th) (Max) @ Id: | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 6nC @ 10V | Input Capacitance (Ciss) (Max) @ Vds: | 353pF @ 15V |
Product Description
CSD87502Q2T Mosfet Array 30V 5A 2.3W Surface Mount 6-WSON (2x2)
Specifications of CSD87502Q2T
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 5V Drive |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Rds On (Max) @ Id, Vgs | 32.4mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 353pF @ 15V |
| Power - Max | 2.3W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Base Product Number | CSD87502 |
Features of CSD87502Q2T
* Low On-Resistance
* Dual Independent MOSFETs
* Space Saving SON 2 x 2 mm Plastic Package
* Optimized for 5 V Gate Driver
* Avalanche Rated
* Pb and Halogen Free
* RoHS Compliant
Applications of CSD87502Q2T
* Point-of-Load Synchronous Buck Converter forApplications in Networking, Telecom, and Computing Systems
* Adaptor or USB Input Protection for NotebookPCs and Tablets
* Battery Protection
