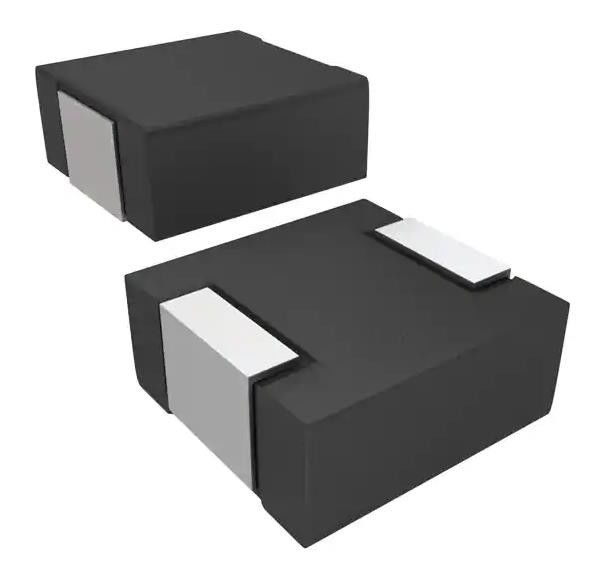

IHLP2525BDER8R2M01 8.2 µH Shielded Molded Inductor 3 A 106mOhm Max Nonstandard
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IHLP2525BDER8R2M01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Inductance: | 8.2 µH | Tolerance: | ±20% |
|---|---|---|---|
| Current Rating (Amps): | 0.125 | Current - Saturation (Isat): | 8A |
| DC Resistance (DCR): | 106mOhm Max | Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 KHz | Height - Seated (Max): | 0.094" (2.40mm) |
Product Description
CHV2512-JW-107ELF 100 MOhms ±5% 1W Chip Resistor 2512 High Voltage Thick Film
Specifications of IHLP2525BDER8R2M01
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Vishay Dale |
| Series | IHLP-2525BD-01 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Molded |
| Material - Core | - |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 0.125 |
| Current - Saturation (Isat) | 8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 106mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Features of IHLP2525BDER8R2M01
• Lowest height (2.4 mm) in this package footprint
• Shielded construction
• Frequency range up to 5.0 MHz
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• IHLP design. PATENT(S): www.vishay.com/patents
• Material categorization: for definitions of compliance
Applications of IHLP2525BDER8R2M01
• PDA / notebook / desktop / server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array (FPGA)
