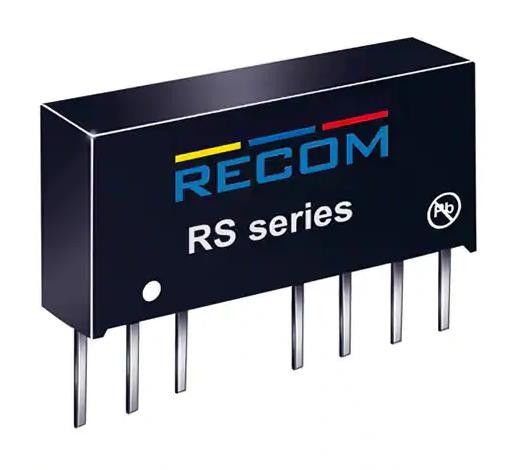

RS-2405SZ/H3 Isolated Module DC DC Converter 1 Output 5V 400mA 9V - 36V Input
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RS-2405SZ/H3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 9V |
|---|---|---|---|
| Voltage - Input (Max): | 36V | Voltage - Output 1: | 5V |
| Current - Output (Max): | 400mA | Power (Watts): | 2 W |
Product Description
RS-2405SZ/H3 Isolated Module DC DC Converter 1 Output 5V 400mA 9V - 36V Input
Specifications of RS-2405SZ/H3
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Recom Power |
| Series | ECONOLINE RS (2W) |
| Package | Tube |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) |
| Control Features | Enable, Active Low |
| Base Product Number | RS-2405 |
Features of RS-2405SZ/H3
● 2:1 and 4:1 Wide Input Voltage Ranges
● 1kVDC, 2kVDC & 3kVDC Isolation
● UL94V-0 Package Material
● Continuous Short Circuit Protection
● Low Noise
● No External Capacitor needed
● Efficiency to 83 %
Applications of RS-2405SZ/H3
High power-density, an industrial temperature range of -40°C to +85°C and extra features like Remote-On-Off- control are just some of the characteristics of this converter, ideal for highly sophisticated industrial designs. The RS series is available with isolation of 2kV or 3kV by choosing option "/H2" or "/H3" in which case it is also ideal for medical applications which additionally require EN-60601-1 certification
