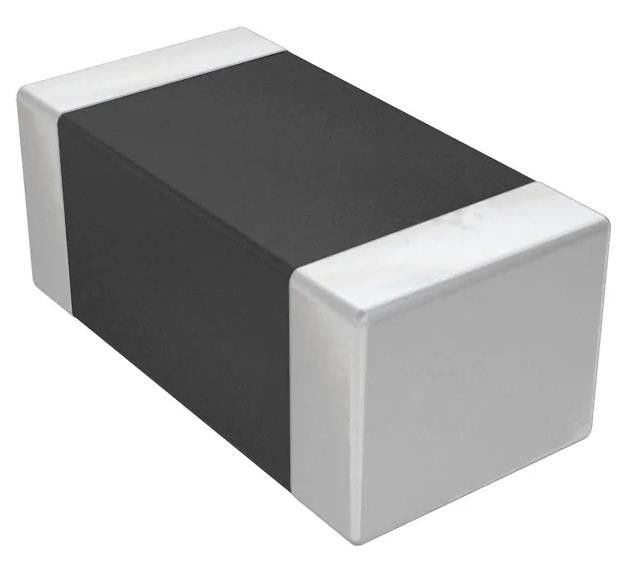

742792113 120 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1206 3A 30mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 742792113 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Filter Type: | Signal Line | Number Of Lines: | 1 |
|---|---|---|---|
| Impedance @ Frequency: | 120 Ohms @ 100 MHz | Current Rating (Max): | 3A |
| DC Resistance (DCR) (Max): | 30mOhm | Operating Temperature: | -55°C ~ 125°C |
Product Description
742792113 120 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1206 3A 30mOhm
Specifications of 742792113
| TYPE | DESCRIPTION |
| Category | Filters |
| Ferrite Beads and Chips | |
| Mfr | Würth Elektronik |
| Series | WE-CBF |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 30mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.051" (1.30mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
