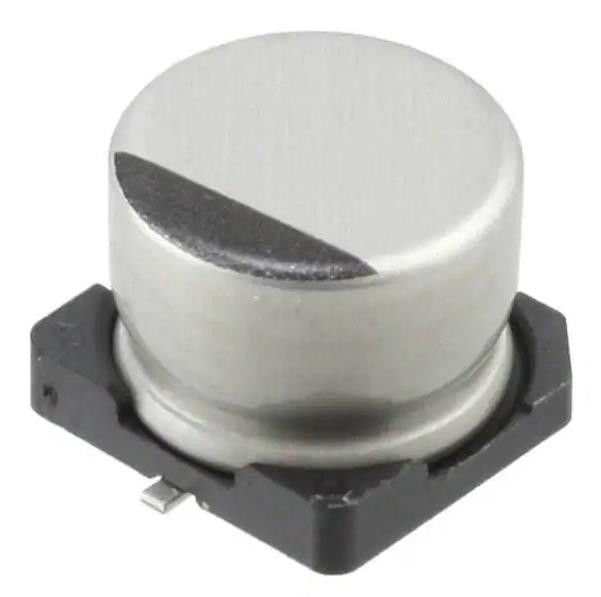

UCL1E331MNL1GS 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCL1E331MNL1GS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Capacitance: | 330 µF | Tolerance: | ±20% |
|---|---|---|---|
| Voltage - Rated: | 25V | Lifetime @ Temp.: | 2000 Hrs @ 105°C |
| Operating Temperature: | -55°C ~ 105°C | Ripple Current @ Low Frequency: | 425 MA @ 120 Hz |
Product Description
UCL1E331MNL1GS 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD
Specifications of UCL1E331MNL1GS
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | Nichicon |
| Series | UCL |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Features of UCL1E331MNL1GS
* Chip type, low impedance, temperature range up to +105°C.
* Applicable to automatic mounting machine fed with carrier tape.
* Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).
* AEC-Q200 compliant. Please contact us for details.
Applications of UCL1E331MNL1GS
* Category Temperature Range:– 55 to +105°C
* Rated Voltage Range:6.3 to 50V
* Rated Capacitance Range:10 to 2200µF
* Capacitance Tolerance:± 20% at 120Hz, 20°C
* Leakage Current:After 2 minutes' application of rated voltages at 20°C, leakage current is not more than 0.01 CV or 3 (µA), whichever is greater
