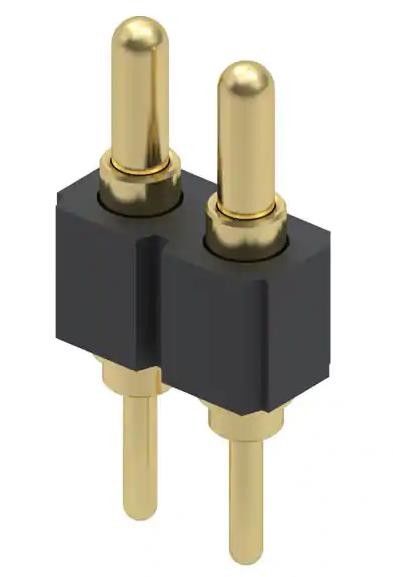

825-22-002-10-001101 2 Position Spring Piston Connector Through Hole
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 825-22-002-10-001101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Connector Type: | Piston | Number Of Contacts: | 2 |
|---|---|---|---|
| Pitch: | 0.100" (2.54mm) | Number Of Rows: | 1 |
| Mounting Type: | Through Hole | Material: | Copper Alloy |
Product Description
825-22-002-10-001101 2 Position Spring Piston Connector Through Hole
Specifications of 825-22-002-10-001101
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Spring Loaded | |
| Mfr | Mill-Max Manufacturing Corp. |
| Series | 825 |
| Package | Bulk |
| Connector Type | Piston |
| Number of Contacts | 2 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Mounting Type | Through Hole |
| Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Base Product Number | 825-22 |
Features of 825-22-002-10-001101
• Modular contacts for use on .100” grid, available in four heights from .302” to .392”, supplied in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure up to 1,000,000 cycle life durability
• Pistons have a .045” mid. stroke and a .090” max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 825 & 827 series contact strips are designed for manual placement into Ø .038”±.003” plated through-holes in the circuit board prior to hand, wave or reflow soldering
Applications of 825-22-002-10-001101
* Materials:
-Contact piston & base: Machined copper alloy plated 20μ” gold over 100μ” nickelSpring: Beryllium copper-plated 10μ“gold Insulator: High temperature thermoplastic, rated UL94 V-0
