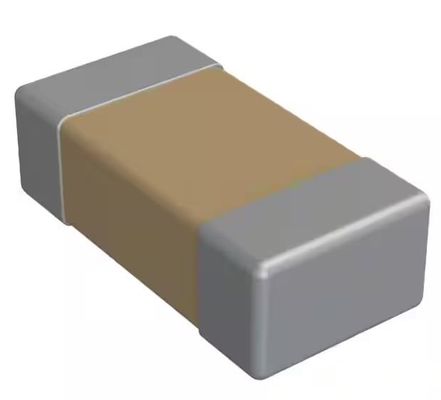

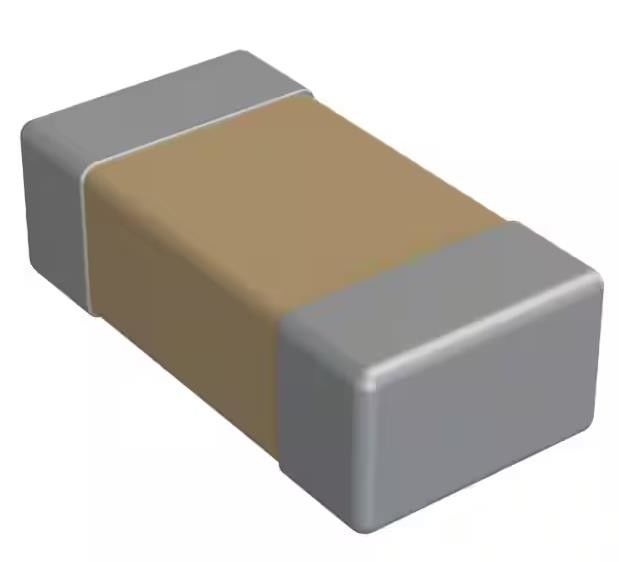

C0603C102K5RACTU 1000 pF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | C0603C102K5RACTU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Capacitance: | 1000 PF | Tolerance: | ±10% |
|---|---|---|---|
| Voltage - Rated: | 50V | Temperature Coefficient: | X7R |
| Operating Temperature: | -55°C ~ 125°C | Applications: | Bypass, Decoupling |
Product Description
C0603C102K5RACTU 1000 pF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)
Specifications of C0603C102K5RACTU
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Ceramic Capacitors | |
| Mfr | KEMET |
| Series | SMD Comm X7R |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Capacitance | 1000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 50V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.034" (0.87mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | C0603C |
Features of C0603C102K5RACTU
• −55°C to +125°C operating temperature range
• Lead (Pb)-free, RoHS, and REACH Compliant
• Temperature stable dielectric
• EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220,and 2225 case sizes
• DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 35 V, 50 V,100 V, 200 V, and 250 V
• Capacitance offerings ranging from 10 pF to 47 μF
• Available capacitance tolerances of ±5%, ±10%, and ±20%
• Non-polar device, minimizing installation concerns
• 100% pure matte tin-plated termination finish allowing for excellent solderability
• SnPb termination finish option available upon request (5% Pb minimum)
Introduction of C0603C102K5RACTU
Typical applications include decoupling, bypass, filtering and transient voltage suppression.
