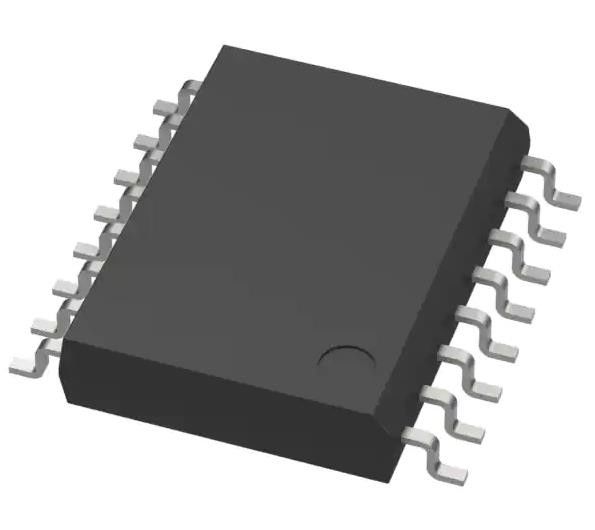

SI8660BD-B-IS General Purpose Digital Isolator 5000Vrms 6 Channel 150Mbps 35kV/µs
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SI8660BD-B-IS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 6 | Inputs - Side 1/Side 2: | 6/0 |
|---|---|---|---|
| Voltage - Isolation: | 5000Vrms | Common Mode Transient Immunity (Min): | 35kV/µs |
| Data Rate: | 150Mbps | Propagation Delay TpLH / TpHL (Max): | 13ns, 13ns |
Product Description
SI8660BD-B-IS General Purpose Digital Isolator 5000Vrms 6 Channel 150Mbps 35kV/µs
Specifications of SI8660BD-B-IS
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Skyworks Solutions Inc. |
| Series | - |
| Package | Tube |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 6/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Pulse Width Distortion (Max) | 4.5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | SI8660 |
Features of SI8660BD-B-IS
• High-speed operation
• DC to 150 Mbps
• No start-up initialization required
• Wide Operating Supply Voltage
• 2.5–5.5 V
• Up to 5000 VRMS isolation
• 60-year life at rated working voltage
• High electromagnetic immunity
• Ultra low power (typical)
• 5 V Operation
• 1.6 mA per channel at 1 Mbps
• 5.5 mA per channel at 100 Mbps
• 2.5 V Operation
• 1.5 mA per channel at 1 Mbps
• 3.5 mA per channel at 100 Mbps
• Schmitt trigger inputs
• Selectable fail-safe mode
• Default high or low output (ordering option)
• Precise timing (typical)
• 10 ns propagation delay
• 1.5 ns pulse width distortion
• 0.5 ns channel-channel skew
• 2 ns propagation delay skew
• 5 ns minimum pulse width
• Transient Immunity 50 kV/µs
• AEC-Q100 qualification
• Wide temperature range
• –40 to 125 °C
• RoHS-compliant packages
• SOIC-16 wide body
• SOIC-16 narrow body
• QSOP-16
• Automotive-grade OPNs available
• AIAG compliant PPAP documentation support
• IMDS and CAMDS listing support
Applications of SI8660BD-B-IS
• Industrial automation systems
• Medical electronics
• Isolated switch mode supplies
• Isolated ADC, DAC
• Motor control
• Power inverters
• Communication systems
