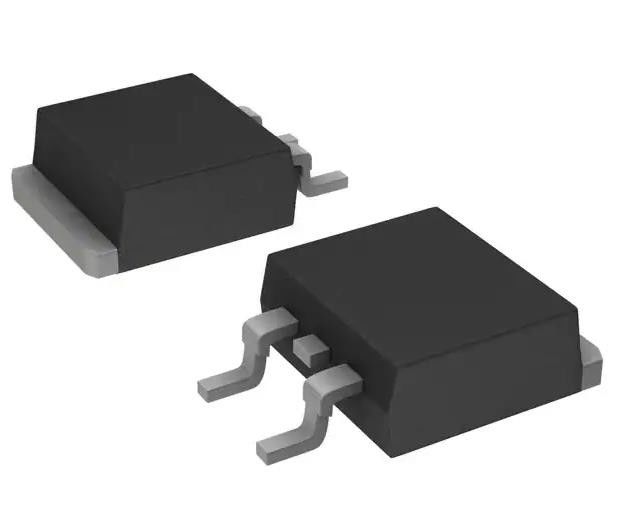

NJVMJD45H11RLG Bipolar (BJT) Transistor PNP 80 V 8 A 40MHz 1.75 W DPAK
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NJVMJD45H11RLG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP | Current - Collector (Ic) (Max): | 0.333333333 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 80V | Vce Saturation (Max) @ Ib, Ic: | 1V @ 400mA, 8A |
| Current - Collector Cutoff (Max): | 10µA | DC Current Gain (hFE) (Min) @ Ic, Vce: | 60 @ 2A, 1V |
Product Description
NJVMJD45H11RLG Bipolar (BJT) Transistor PNP 80 V 8 A 40MHz 1.75 W DPAK
Specifications of NJVMJD45H11RLG
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 0.333333333 |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 2A, 1V |
| Power - Max | 1.75 W |
| Frequency - Transition | 40MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | NJVMJD45 |
Features of NJVMJD45H11RLG
* Lead Formed for Surface Mount Application in Plastic Sleeves (No Suffix)
• Straight Lead Version in Plastic Sleeves (“−1” Suffix)
• Electrically Similar to Popular D44H/D45H Series
• Low Collector Emitter Saturation Voltage
• Fast Switching Speeds
• Complementary Pairs Simplifies Designs
• Epoxy Meets UL 94 V−0 @ 0.125 in
• NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Introduction of NJVMJD45H11RLG
Designed for general purpose power and switching such as output or driver stages in applications such as switching regulators, converters,and power amplifiers.
