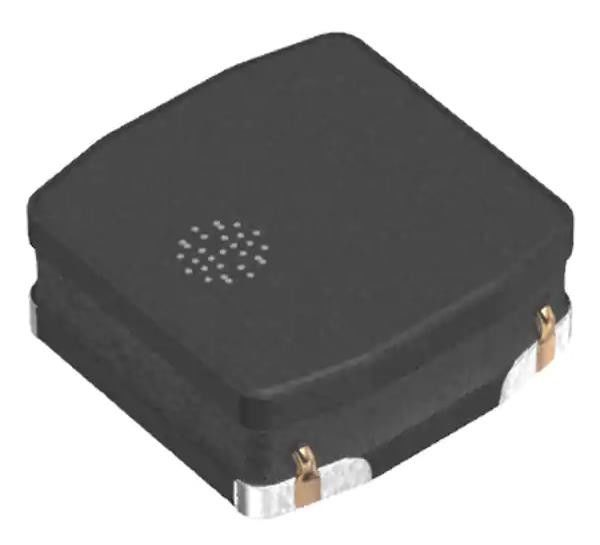

VLS3012CX-4R7M-1 4.7 µH Shielded Drum Core Wirewound Inductor 1.75 A 166mOhm Max
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VLS3012CX-4R7M-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Material - Core: | Ferrite | Inductance: | 4.7 µH |
|---|---|---|---|
| Tolerance: | ±20% | Current Rating (Amps): | 1.75 A |
| Current - Saturation (Isat): | 1.31A | Shielding: | Shielded |
| DC Resistance (DCR): | 166mOhm Max | Operating Temperature: | -40°C ~ 105°C |
Product Description
VLS3012CX-4R7M-1 4.7 µH Shielded Drum Core Wirewound Inductor 1.75 A 166mOhm Max
Specifications of VLS3012CX-4R7M-1
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | VLS-CX-1 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.75 A |
| Current - Saturation (Isat) | 1.31A |
| Shielding | Shielded |
| DC Resistance (DCR) | 166mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
Features of VLS3012CX-4R7M-1
* Magnetic shield type wound inductor for power circuits using a ferrite magnetic material.
* High magnetic shield construction and compatible with high-density mounting.
* Larger current and lower Rdc were achieved by optimizing the ferrite core figure.
* Operating temperature range: –40 to +105°C (including self-temperature rise)
Introduction of VLS3012CX-4R7M-1
Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices, compact power supply modules, other
