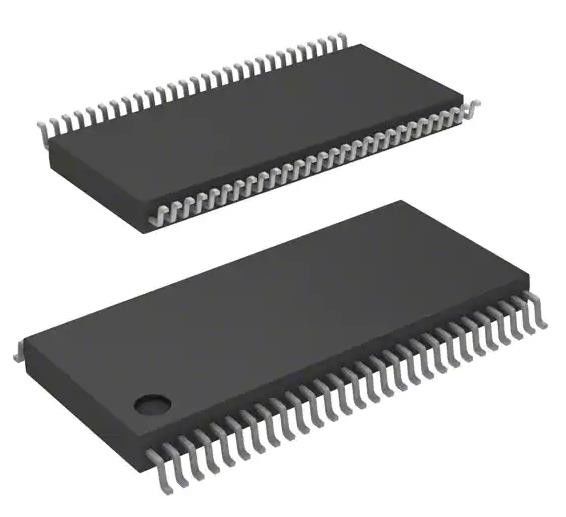

DS90C385AMT/NOPB 5/0 Driver FPD-Link, LVDS 56-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90C385AMT/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Driver | Protocol: | FPD-Link, LVDS |
|---|---|---|---|
| Number Of Drivers/Receivers: | 5/0 | Data Rate: | 2.45Gbps |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -10°C ~ 70°C |
Product Description
ISL97671AIRZ-TK LED Driver IC 6 Output Regulator Step-Up PWM Dimming 50mA
Specifications of DS90C385AMT/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Type | Driver |
| Protocol | FPD-Link, LVDS |
| Number of Drivers/Receivers | 5/0 |
| Duplex | - |
| Data Rate | 2.45Gbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
| Base Product Number | DS90C385 |
Features of DS90C385AMT/NOPB
* Pin-to-Pin Compatible to DS90C383,DS90C383A and DS90C385
* No Special Start-Up Sequence Requiredbetween Clock/Data and /PD Pins. InputSignals (Clock and Data) can be Applied Either Before or After the Device is Powered.
* Support Spread Spectrum Clocking up to100kHz Frequency Modulation and Deviationsof +2.5% Center Spread or -5% Down Spread*“Input Clock Detection" Feature Will Pull AllLVDS Pairs to Logic Low When Input Clock isMissing and When /PD Pin is Logic High
* 18 to 87.5 MHz Shift Clock Support
* Tx Power Consumption < 147 mW (typ) at87.5MHz Grayscale
* Tx Power-Down Mode < 60 uW (typ)
* Supports VGA, SVGA, XGA, SXGA(Dual Pixel)SXGA+(Dual Pixel), UXGA(Dual Pixel).
* Narrow Bus Reduces Cable Size and Cost
* Up to 2.45 Gbps Throughput
* Up to 306.25Megabyte/sec Bandwidth
* 345 mV (typ) Swing LVDS Devices for Low EMI
* PLL Requires No External Components
* Compliant to TIA/EIA-644 LVDS standard
* Low Profile 56-lead TSSOP Package
Introduction of DS90C385AMT/NOPB
* The DS90C385A is a pin to pin compatiblereplacement for DS90C383, DS90C383A andDS90C385.The DS90C385A has additional features and improvements making it an ideal replacement forDS90C383.DS90C383A and DS90C385. family ofLVDS Transmitters.
