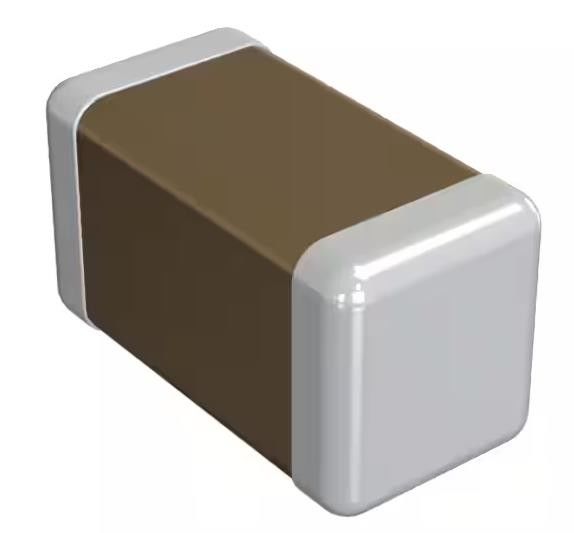

GRM155R71A224KE01D 0.22 µF ±10% 10V Ceramic Capacitor X7R 0402 (1005 Metric)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | GRM155R71A224KE01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Capacitance: | 0.22 µF | Tolerance: | ±10% |
|---|---|---|---|
| Voltage - Rated: | 10V | Temperature Coefficient: | X7R |
| Operating Temperature: | -55°C ~ 125°C | Applications: | General Purpose |
Product Description
GRM155R71A224KE01D 0.22 µF ±10% 10V Ceramic Capacitor X7R 0402 (1005 Metric)
Specifications of GRM155R71A224KE01D
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Ceramic Capacitors | |
| Mfr | Murata Electronics |
| Series | GRM |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Capacitance | 0.22 µF |
| Tolerance | ±10% |
| Voltage - Rated | 10V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.022" (0.55mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | GRM155R71A |
Features of GRM155R71A224KE01D
1. Evaluate the capacitor in the actual system,to confirm that there is no problem with the performance and specification
values in a finished product before using.
2. Since a voltage dependency and temperature dependency exists in the capacitance of high dielectric type ceramic
capacitors, the capacitance may change depending on the operating conditions in the actual system.
Therefore,be sure to evaluate the various characteristics, such as the leakage current and noise absorptivity,
which will affect the capacitance value of the capacitor.
3. In addition,voltages exceeding the predetermined surge may be applied to the capacitor by the inductance in
the actual system. Evaluate the surge resistance in the actual system as required.
Introduction of GRM155R71A224KE01D
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.
