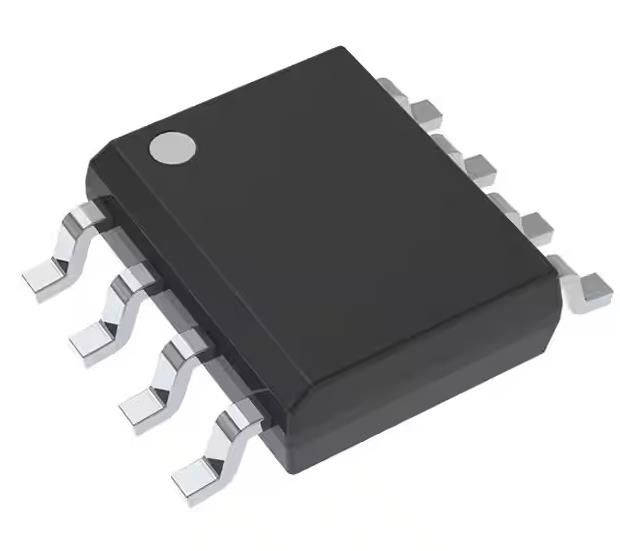

SN65HVD1782QDRQ1 1/1 Transceiver Half RS422, RS485 8-SOIC 3.3V ~ 5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN65HVD1782QDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Protocol: | RS422, RS485 | Number Of Drivers/Receivers: | 1/1 |
|---|---|---|---|
| Duplex: | Half | Receiver Hysteresis: | 50 MV |
| Data Rate: | 10Mbps | Voltage - Supply: | 3.3V ~ 5V |
| Operating Temperature: | -40°C ~ 125°C | Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
Product Description
SN65HVD1782QDRQ1 1/1 Transceiver Half RS422, RS485 8-SOIC 3.3V ~ 5V
Specifications of SN65HVD1782QDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 50 mV |
| Data Rate | 10Mbps |
| Voltage - Supply | 3.3V ~ 5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | 65HVD1782 |
Features of SN65HVD1782QDRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results
– Device Temperature Grade 1:
–40°C to 125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level H2
– Device CDM ESG Classification Level C3B
• Bus-Pin Fault Protection to:
– > ±70 V ('HVD1780-Q1, 'HVD1781-Q1)
– > ±30 V ('HVD1782-Q1)
• Operation With 3.3-V to 5-V Supply Range
• ±16-kV HBM Protection on Bus Pins
• Reduced Unit Load for up to 320 Nodes
• Failsafe Receiver for Open-Circuit, Short-Circuit and Idle-Bus Conditions
• Low Power Consumption
– Low Standby Supply Current, 1 μA Maximum
– ICC 4-mA Quiescent During Operation
• Pin-Compatible With Industry-Standard SN75176
• Signaling Rates of 115 kbps, 1 Mbps, and up to 10 Mbps
Introduction of SN65HVD1782QDRQ1
Automotive Data Links
