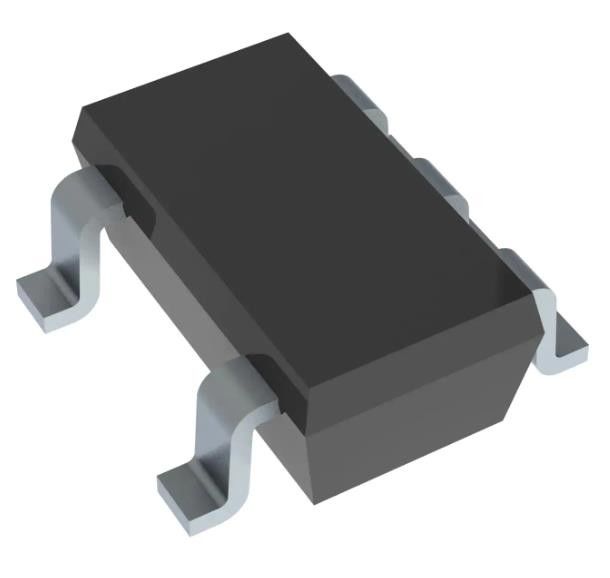

TPS76333DBVR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS76333DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 10V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 3.3V | Voltage Dropout (Max): | 0.5V @ 150mA |
| Current - Output: | 150mA | Current - Quiescent (Iq): | 100 µA |
| Current - Supply (Max): | 140 µA | PSRR: | 60dB (1kHz) |
| High Light: | Positive Fixed Linear Voltage Regulator IC,SOT-23-5 Linear Voltage Regulator IC,TPS76333DBVR Linear Voltage Regulator IC |
||
Product Description
TPS76333DBVR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Specifications of TPS76333DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 140 µA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS76333 |
Features of TPS76333DBVR
• 150-mA, low-dropout regulator
• Output voltage: 5 V, 3.8 V, 3.3 V, 3 V, 2.8 V,2.7 V, 2.5 V, 1.8 V, 1.6 V, and variable
• Dropout voltage, typically 300 mV at 150 mA
• Thermal protection
• Overcurrent limitation
• Less than 2-µA quiescent current in shutdown mode
• –40°C to 125°C operating junction temperature range
• 5-pin SOT-23 (DBV) package
Application of TPS76333DBVR
• Electricity meters
• Solar inverters
• HVAC systems
• Servo drives and motion control
• Sensor transmitters
