TPS22917DBVR Power Switch/Driver 1:1 P-Channel 2A SOT-23-6 1V ~ 5.5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS22917DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Ratio - Input:Output: | 0.042361111 |
|---|---|---|---|
| Output Configuration: | High Side | Voltage - Load: | 0V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd): | 1V ~ 5.5V | Current - Output (Max): | 2A |
| Rds On (Typ): | 80mOhm | Operating Temperature: | -40°C ~ 125°C |
| High Light: | 1V 5.5V Power Switch/Driver,TPS22917DBVR Power Switch/Driver,P-Channel Power Switch/Driver |
||
Product Description

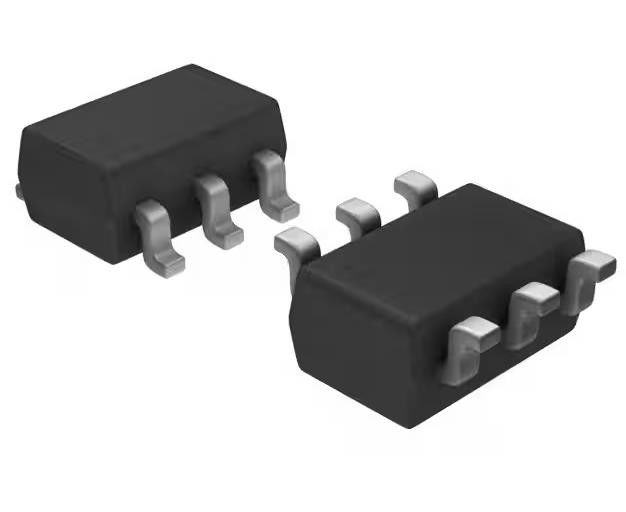

TPS22917DBVR Power Switch/Driver 1:1 P-Channel 2A SOT-23-6 1V ~ 5.5V
Specifications of TPS22917DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 0V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 1V ~ 5.5V |
| Current - Output (Max) | 2A |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | Reverse Current |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Package / Case | SOT-23-6 |
| Base Product Number | TPS22917 |
Features of TPS22917DBVR
• Input operating voltage range (VIN): 1 V to 5.5 V
• Maximum continuous current (IMAX): 2 A
• On-resistance (RON):
– 5 VIN = 80 mΩ (typical)
– 1.8 VIN = 120 mΩ (typical)
– 1 VIN = 220 mΩ (typical)
• Ultra-low power consumption:
– ON state (IQ): 0.5 µA (typical)
– OFF state (ISD): 10 nA (typical)
• Smart ON pin pulldown (RPD):
– ON ≥ VIH (ION): 10 nA (maximum)
– ON ≤ VIL (RPD): 750 kΩ (typical)
• Adjustable turn ON limits inrush current (tON):
– 5-V tON = 100 μs at 72 mV/μs (CT = open)
– 5-V tON = 4000 μs at 2.3 mV/μs (CT = 1000 pF)
• Adjustable output discharge and fall time:
– Optional QOD resistance ≥ 150 Ω (internal)
• Always-ON true Reverse Current Blocking (RCB):
– Activation current (IRCB): –500 mA (typical)
– Reverse leakage (IIN,RCB): –1 µA (maximum)
Application of TPS22917DBVR
• Industrial systems
• Set top box
• Blood glucose meters
• Electronic point of sale
