ISO7240CFDW General Purpose Digital Isolator 2500Vrms 4 Channel 25Mbps 25kV/µs CMTI
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO7240CFDW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 4 | Inputs - Side 1/Side 2: | 4/0 |
|---|---|---|---|
| Channel Type: | Unidirectional | Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs | Data Rate: | 25Mbps |
| Propagation Delay TpLH / TpHL (Max): | 42ns, 42ns | Pulse Width Distortion (Max): | 2.5ns |
| High Light: | 4 Channel General Purpose Digital Isolator,25Mbps General Purpose Digital Isolator IC,ISO7240CFDW Digital Isolator IC |
||
Product Description

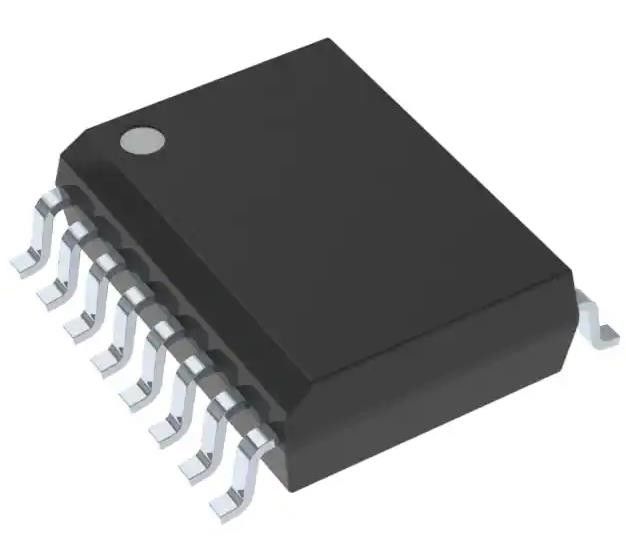

ISO7240CFDW General Purpose Digital Isolator 2500Vrms 4 Channel 25Mbps 25kV/µs CMTI
Specifications of ISO7240CFDW
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 42ns, 42ns |
| Pulse Width Distortion (Max) | 2.5ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3.15V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ISO7240 |
Features of ISO7240CFDW
• 25 and 150-Mbps Signaling Rate Options
– Low Channel-to-Channel Output Skew;1 ns Maximum
– Low Pulse-Width Distortion (PWD); 2 ns Maximum
– Low Jitter Content; 1 ns Typ at 150 Mbps
• Selectable Default Output (ISO7240CF)
• > 25-Year Life at Rated Working Voltage (see High-Voltage Lifetime of the ISO72x Family of Digital Isolators and Isolation Capacitor Lifetime Projection)
• 4-kV ESD Protection
• Operates With 3.3-V or 5-V Supplies
• High Electromagnetic Immunity (see ISO72x Digital Isolator Magnetic-Field Immunity)
• –40°C to +125°C Operating Temperature Range
• Safety-Related Certifications:
– VDE 4000 VPK Basic Insulation per DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
– 2.5 kVRMS Insulation for 1 minute per UL 1577
– CSA Component Acceptance Notice #5A and IEC 60950-1 End Equipment Standard
