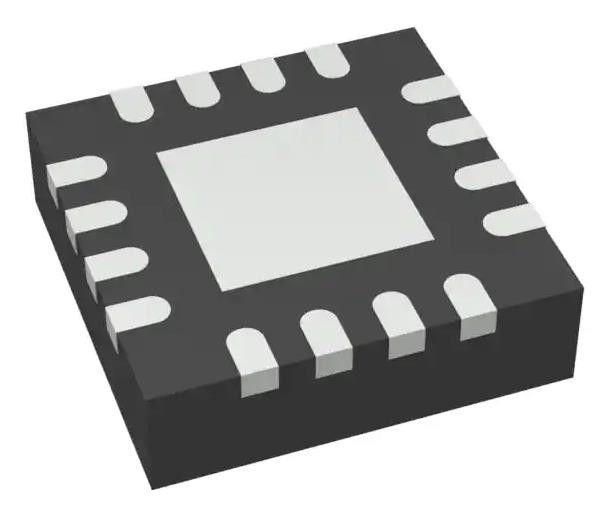

ADS7924IRTER 12 Bit Analog to Digital Converter 4 Input 1 SAR 16-WQFN (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7924IRTER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 100k |
|---|---|---|---|
| Number Of Inputs: | 4 | Input Type: | Single Ended |
| Data Interface: | I²C | Configuration: | MUX-ADC |
| Number Of A/D Converters: | 1 | Voltage - Supply, Analog: | 2.2V ~ 5.5V |
| High Light: | ADS7924IRTER Analog to Digital Converter,16-WQFN Analog to Digital Converter,12 Bit Analog to Digital Converter |
||
Product Description
UCC28951QPWRQ1 Full-Bridge Regulator Positive Output DC Controller IC 24-TSSOP
Specifications of ADS7924IRTER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | microPOWER™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | I²C |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.2V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7924 |
Features of ADS7924IRTER
• Intelligent Monitoring:
– Auto-Sequencing of 4-Channel Multiplexer
– Individual Alarm Thresholds for Each Channel
– Programmable Scan Rate
• MicroPOWER™ Monitoring:
– Four-Channel Scanning:
– Every 1 ms → 25 μW
– Every 10 ms → 5 μW
– < 1 µA of Power-Down Current
– Programmable Interrupt Pin Controls Shutdown/Wakeup of the Microcontroller
– Auto Power-Down Control
– PWRCON Pin Allows Shutdown of External Operational Amplifiers
• Wide Supply Range:
– Analog Supply: 2.2 V to 5.5 V
– Digital Supply: 1.65 V to 5.5 V
• Small Footprint: 3-mm × 3-mm WQFN
Application of ADS7924IRTER
• Portable and Battery-Powered Systems:
– Medical, Communications, Remote Sensor Signal Monitoring, Power-Supply Monitoring
• Energy Harvesting
