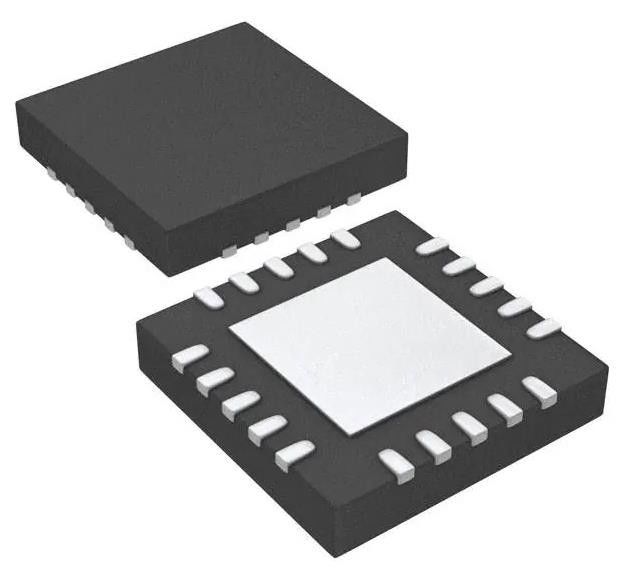

TPS7A8300RGRR Linear Voltage Regulator IC Adjustable/Programmable 1 Output 2A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A8300RGRR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 6.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 0.8V | Voltage - Output (Max): | 5V |
| Voltage Dropout (Max): | 0.2V @ 2A | Current - Output: | 2A |
| Current - Quiescent (Iq): | 4 MA | Current - Supply (Max): | 5 MA |
| High Light: | TPS7A8300RGRR Linear Voltage Regulator IC,Programmable Linear Voltage Regulator IC,TPS7A8300RGRR |
||
Product Description
TPS7A8300RGRR Linear Voltage Regulator IC Adjustable/Programmable 1 Output 2A
Specifications of TPS7A8300RGRR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Adjustable/Programmable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.2V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 4 mA |
| Current - Supply (Max) | 5 mA |
| PSRR | 40dB (1MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x3.5) |
| Base Product Number | TPS7A8300 |
Features of TPS7A8300RGRR
* Ultralow Dropout: 125 mV Maximum at 2 A
* Output Voltage Noise: 6 pVRMs
* Power-Supply Ripple Rejection:40 dB at 1 MHz
* Input Voltage Range:
- Without BIAS: 1.4 V to 6.5 V
- With BIAS: 1.1 V to 6.5 V
* Two Output Voltage Modes:
- ANY-OUTT Version (User-ProgrammableOutput via PCB Layout):
- No External Resistor Required
- Output Voltage Range: 0.8 V to 3.95 VAdjustable Version:
- Output Voltage Range: 0.8 V to 5.0 V
* 1.0% Accuracy Over Line, Load, and Temperature
* Stable with a 22-F Output Ceramic Capacitor
* Programmable Soft-Start Output
* Power-Good (PG) Output
* Available Packages:
- 5-mm x 5-mm VQFN-20
- 3.5-mm x 3.5-mm VQFN-20
