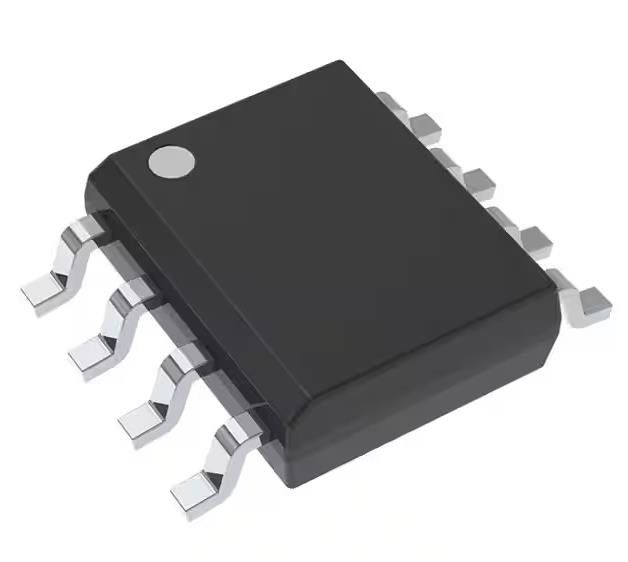

INA240A1QDRQ1 Current Sense Amplifier 1 Circuit 8-SOIC 400 kHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | INA240A1QDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Slew Rate: | 2V/µs |
|---|---|---|---|
| -3db Bandwidth: | 400 KHz | Current - Input Bias: | 90 µA |
| Voltage - Input Offset: | 5 µV | Current - Supply: | 1.8mA |
| Voltage - Supply Span (Min): | 2.7 V | Voltage - Supply Span (Max): | 5.5 V |
| Highlight: | 1 Circuit Current Sense Amplifier,INA240A1QDRQ1 Current Sense Amplifier,8-SOIC Current Sense Amplifier |
||
Product Description
INA240A1QDRQ1 Current Sense Amplifier 1 Circuit 8-SOIC 400 kHz
Specifications of INA240A1QDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 2V/µs |
| -3db Bandwidth | 400 kHz |
| Current - Input Bias | 90 µA |
| Voltage - Input Offset | 5 µV |
| Current - Supply | 1.8mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | INA240 |
Features of INA240A1QDRQ1
• AEC-Q100 Qualified for Automotive Applications
– Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
– Temperature Grade 0: –40°C to +150°C Ambient Operating Temperature Range
– HBM ESD Classification Level H2
– CDM ESD Classification Level C5
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• Enhanced PWM Rejection
• Excellent CMRR:
– 132-dB DC CMRR
– 93-dB AC CMRR at 50 kHz
• Wide Common-Mode Range: –4 V to 80 V
• Accuracy:
– Gain Error: 0.20% (Maximum) With 2.5 ppm/°C (Maximum Drift)
– Offset Voltage: ±25 μV (Maximum) With 250nV/°C (Maximum Drift)
• Available Gains:
– INA240A1-Q1: 20 V/V
– INA240A2-Q1: 50 V/V
– INA240A3-Q1: 100 V/V
– INA240A4-Q1: 200 V/V
Introduction of INA240A1QDRQ1
• Electronic Power Steering
• Stability and Traction Control
• Motor and Actuator Control
• Solenoid and Valve Control
