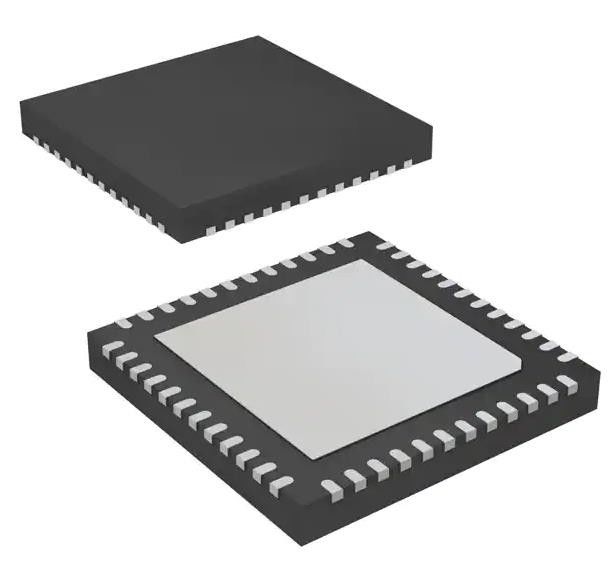

CDCM6208V1RGZR Clock Generator IC 800MHz 1 48-VFQFN Exposed Pad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CDCM6208V1RGZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| PLL: | Yes With Bypass | Input: | CML, LVCMOS, LVDS, LVPECL, Crystal |
|---|---|---|---|
| Output: | CML, HCSL, LVCMOS, LVDS, LVPECL | Number Of Circuits: | 1 |
| Ratio - Input:Output: | 2:08 | Differential - Input:Output: | Yes/Yes |
| Frequency - Max: | 800MHz | Voltage - Supply: | 1.71V ~ 3.465V |
| High Light: | 800MHz Clock Generator IC,48-VFQFN Clock Generator IC,CDCM6208V1RGZR |
||
Product Description
CDCM6208V1RGZR Clock Generator IC 800MHz 1 48-VFQFN Exposed Pad
Specifications of CDCM6208V1RGZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Type | Clock Generator |
| PLL | Yes with Bypass |
| Input | CML, LVCMOS, LVDS, LVPECL, Crystal |
| Output | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:08 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 800MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.71V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Base Product Number | CDCM6208 |
Features of CDCM6208V1RGZR
Administrator:
• Superior Performance With Low Power:
– Low Noise Synthesizer (265 fs-rms Typical Jitter) or Low Noise Jitter Cleaner (1.6 ps-rms Typical Jitter)
– 0.5-W Typical Power Consumption
– High Channel-to-Channel Isolation and Excellent PSRR
– Device Performance Customizable Through Flexible 1.8-V, 2.5-V and 3.3-V Power Supplies, Allowing Mixed Output Voltages
• Flexible Frequency Planning:
– 4x Integer Down-Divided Differential Clock Outputs Supporting LVPECL-Like, CML, or LVDS-Like Signaling
– 4x Fractional or Integer Divided Differential Clock Outputs Supporting HCSL, LVDS-Like Signaling, or Eight CMOS Outputs
– Fractional Output Divider Achieve 0 ppm to < 1ppm Frequency Error and Eliminates Need for Crystal Oscillators and Other Clock Generators
– Output Frequencies up to 800 MHz
• Two Differential Inputs, XTAL Support, Ability for Smart Switching
• SPI, I2C, and Pin Programmable
• Professional User GUI for Quick Design Turnaround
• 7 × 7 mm 48-VQFN package (RGZ)
• –40°C to 85°C Temperature Range
Introduction of CDCM6208V1RGZR
• Base Band Clocking (Wireless Infrastructure)
• Networking and Data Communications
• Micro and Pico Base Stations
• Keystone C66x Multicore DSP Clocking
• Storage Server, Portable Test Equipment
• Medical Imaging, High End A/V
