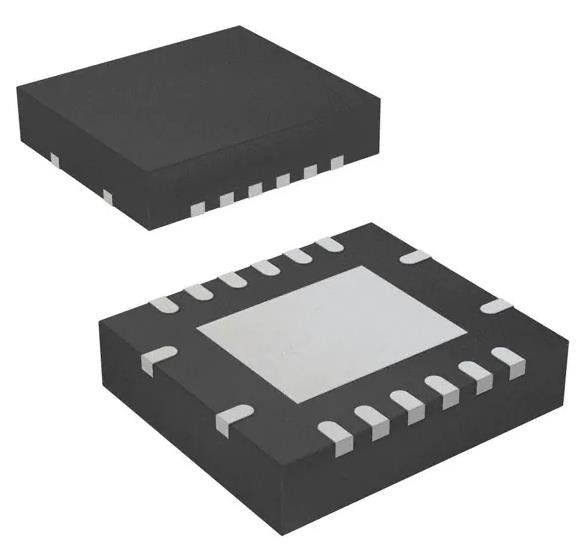

SN74LV123ARGYR Monostable Multivibrator 13 ns 16-VQFN (4x3.5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LV123ARGYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Monostable | Independent Circuits: | 2 |
|---|---|---|---|
| Schmitt Trigger Input: | Yes | Propagation Delay: | 13 Ns |
| Current - Output High, Low: | 12mA, 12mA | Voltage - Supply: | 2 V ~ 5.5 V |
| Operating Temperature: | -40°C ~ 125°C | ||
| High Light: | 16-VQFN Monostable Multivibrator,SN74LV123ARGYR Monostable Multivibrator,SN74LV123ARGYR |
||
Product Description
MSP430F5172IRSBR MSP430 CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 25MHz FLASH
Specifications of SN74LV123ARGYR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Multivibrators | |
| Mfr | Texas Instruments |
| Series | 74LV |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Monostable |
| Independent Circuits | 2 |
| Schmitt Trigger Input | Yes |
| Propagation Delay | 13 ns |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 2 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (4x3.5) |
| Base Product Number | SN74LV123 |
Features of SN74LV123ARGYR
* 2-V to 5.5-V Vcc Operation
* Maximum tpd of 11 ns at 5 V
* Typical VolP (Output Ground Bounce)< 0.8 V at Vcc = 3.3 V, TA = 25'CTypical VoHv (Output Vo Undershoot)> 2.3 V at Vcc = 3.3 V, TA = 25'C
* Support Mixed-Mode Voltage Operation onAlI Ports
* Schmitt-Trigger Circuitry on A, B, and CLR Inputsfor Slow Input Transition Rates
* Edge Triggered From Active-High orActive-Low Gated Logic Inputs
* loff Supports Partia-Power-Down Mode Operation
* Retriggerable for Very Long Output Pulses,up to 100% Duty Cycle
* Overriding Clear Terminates Output Pulse
* Glitch-Free Power-Up Reset on Outputs
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class 11
* ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model(A115-A)
- 1000-V Charged-Device Model (C101)
Introduction of SN74LV123ARGYR
* AV Receivers
* Blu-ray Players and Home Theaters
* DVD Recorders and Players
* Desktop PCs or Notebook PCs
* Digital Radio and Internet Radio Players
* Digital Video Cameras (DVC)
* Embedded PCs
* GPS: Personal Navigation Devices
* Mobile Internet Devices
* Network Attached Storage (NAS)
* Personal Digital Assistant (PDA)
* Server PSU
* Solid-State Drive (SSD): Client and Enterprise
* Video Analytics Servers
* Wireless Headsets, Keyboard, and Mice
