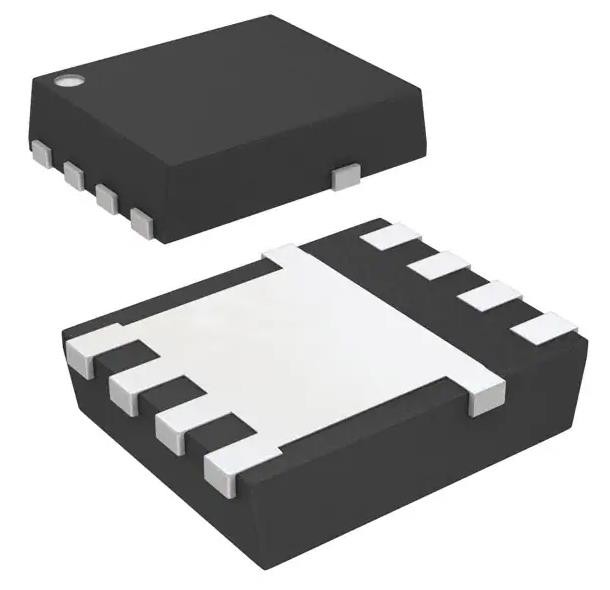

CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta) 125W (Tc) -55°C ~ 150°C (TJ)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD17576Q5B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 30 V | Current - Continuous Drain (Id) @ 25°C: | 100A (Ta) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 2mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id: | 1.8V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 68 NC @ 10 V |
| Vgs (Max): | ±20V | Power Dissipation (Max): | 3.1W (Ta), 125W (Tc) |
| High Light: | CSD17576Q5B N-Channel IC Chips,100A CSD17576Q5B N-Channel IC Chips,3.1W CSD17576Q5B N-Channel IC Chips |
||
Product Description
CSD17576Q5B N-Channel 30 V 100A (Ta) 3.1W (Ta), 125W (Tc) -55°C ~ 150°C (TJ)
Specifications of CSD17576Q5B
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 68 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4430 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSONP (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | CSD17576Q5 |
Features of CSD17576Q5B
• Low Qg and Qgd
• Low RDS(on)
• Low Thermal Resistance
• Avalanche Rated
• Pb Free Terminal Plating
• RoHS Compliant
• Halogen Free
• SON 5-mm × 6-mm Plastic Package
Introduction of CSD17576Q5B
• Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom, and Computing Systems
• Optimized for Synchronous FET Applications
