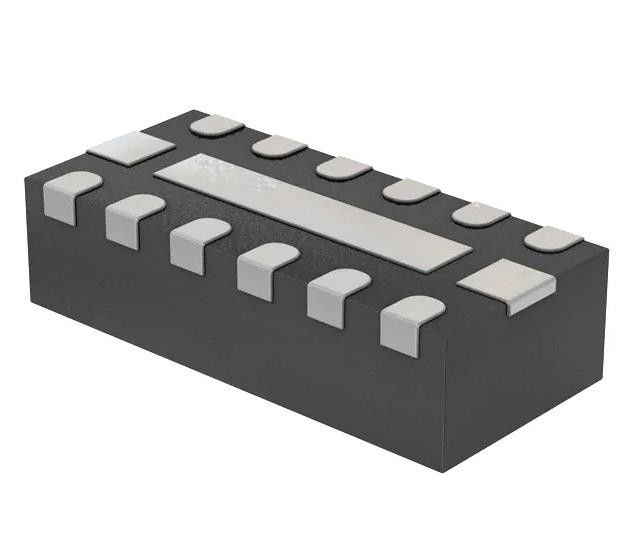

TPD6F002QDSVRQ1 RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel C = 17pF
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPD6F002QDSVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 6 | Center / Cutoff Frequency: | 100MHz (Cutoff) |
|---|---|---|---|
| Attenuation Value: | -30dB @ 800MHz | Resistance - Channel (Ohms): | 100 |
| Values: | R = 100Ohms, C = 17pF | Operating Temperature: | -40°C ~ 125°C |
| Applications: | Automotive | Filter Order: | 2nd |
| High Light: | 17pF pi EMI Filter,6 Channel pi EMI Filter,TPD6F002QDSVRQ1 |
||
Product Description
TPD6F002QDSVRQ1 RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel C = 17pF
Specifications of TPD6F002QDSVRQ1
| TYPE | DESCRIPTION |
| Category | Filters |
| EMI/RFI Filters (LC, RC Networks) | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, TPD |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | 100MHz (Cutoff) |
| Attenuation Value | -30dB @ 800MHz |
| Resistance - Channel (Ohms) | 100 |
| Values | R = 100Ohms, C = 17pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Applications | Automotive |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Size / Dimension | 0.118" L x 0.053" W (3.00mm x 1.35mm) |
| Height | 0.032" (0.81mm) |
| Base Product Number | TPD6F002 |
Features of TPD6F002QDSVRQ1
* AEC-Q101 Qualified
* Six-Channel EMI Filtering for Data Ports
- -47 dB Crosstalk Attenuation at 100 MHz
- -30 dB Insertion Loss at 800 MHz
- -3 dB Bandwidth 100 MHz
* Pi-Style (C-R-C) Filter Configuration(R = 100 2, CTOTAL = 34 pF)
* Robust ESD Protection Exceeds IEC 61000-4-2(Level 4)
- +20-kV IEC 61000-4-2 Contact Discharge
- +30-kV IEC 61000-4-2 Air-Gap Discharge
* Low Leakage Current 20 nA (Max)
* Space-Saving SON Package (3 mm x 1.35 mm)
Introduction of TPD6F002QDSVRQ1
• LCD Display Interface
• GPIO
• Memory Interface
• Data Lines at Flex Cable
• FPD-Link
