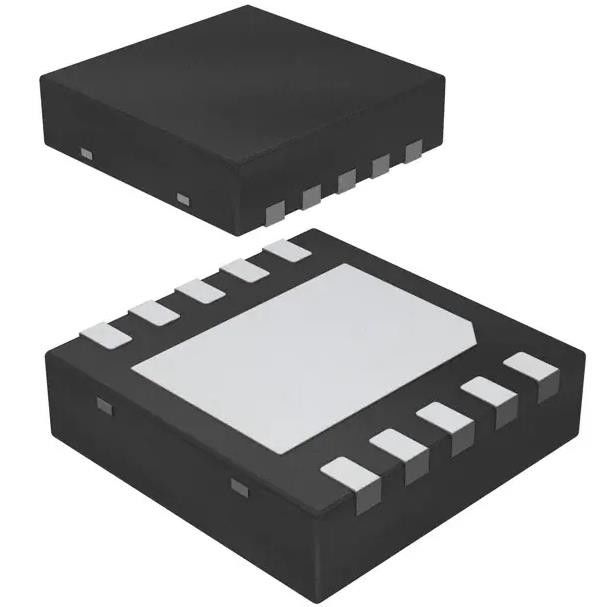

LMR14050QDPRRQ1 Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMR14050QDPRRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 4V |
|---|---|---|---|
| Voltage - Input (Max): | 40V | Voltage - Output (Min/Fixed): | 0.8V |
| Voltage - Output (Max): | 28V | Current - Output: | 5A |
| Frequency - Switching: | 200kHz ~ 2.5MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Highlight: | 0.8V LMR14050QDPRRQ1 Switching Regulator IC,Positive Adjustable LMR14050QDPRRQ1 Switching Regulator IC,1 Output LMR14050QDPRRQ1 Switching Regulator IC |
||
Product Description
LMR14050QDPRRQ1 Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A
Specifications of LMR14050QDPRRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, SIMPLE SWITCHER® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 28V |
| Current - Output | 5A |
| Frequency - Switching | 200kHz ~ 2.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WSON (4x4) |
| Base Product Number | LMR14050 |
Features of LMR14050QDPRRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40 °C to 125 °C Ambient Operating Temperature Range
- Device HBM ESD Classification Level H1C
- Device CDM ESD Classification Level C4A
• 4 V to 40 V Input Range
• 5 A Continuous Output Current
• Ultra-low 40 µA Operating Quiescent Current
• 90 mΩ High-Side MOSFET
• Minimum Switch-On Time: 75 ns
• Current Mode Control
• Adjustable Switching Frequency from 200 kHz to 2.5 MHz
• Frequency Synchronization to External Clock
• Spread Spectrum Option for Reduced EMI
• Internal Compensation for Ease of Use
• High Duty Cycle Operation Supported
• Precision Enable Input
• 1 µA Shutdown Current
• External Soft-start
• Thermal, Overvoltage and Short Protection
• 8-Pin HSOIC with PowerPAD™ Package
Introduction of LMR14050QDPRRQ1
• Automotive Battery Regulation
• Industrial Power Supplies
• Telecom and Datacom Systems
• General Purpose Wide Vin Regulation
