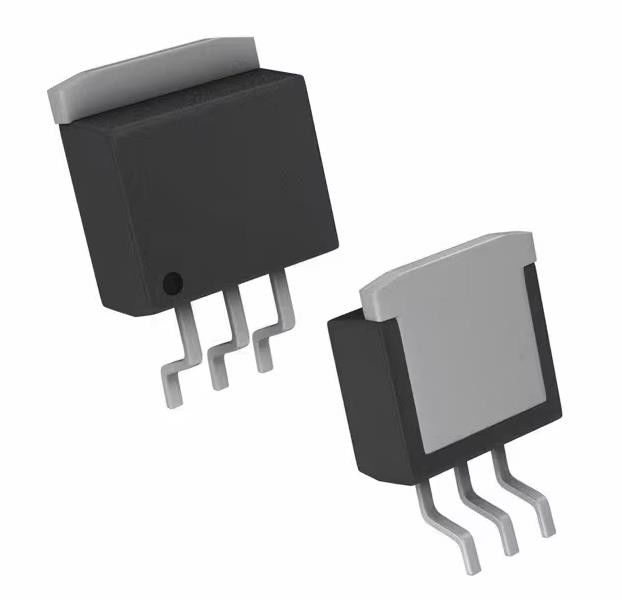

LM3940ISX-3.3/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 1A DDPAK
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3940ISX-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 7.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 3.3V | Voltage Dropout (Max): | 0.2V @ 100mA |
| Current - Output: | 1A | Protection Features: | Over Temperature, Short Circuit |
| Operating Temperature: | -40°C ~ 125°C | Package / Case: | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| High Light: | 1A Voltage Regulator IC,Positive Fixed Voltage Regulator IC,DDPAK Voltage Regulator IC |
||
Product Description
LM3940ISX-3.3/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 1A DDPAK
Specifications of LM3940ISX-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 100mA |
| Current - Output | 1A |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK/TO-263-3 |
| Base Product Number | LM3940 |
Features of LM3940ISX-3.3/NOPB
• Input Voltage Range: 4.5 V to 5.5 V
• Output Voltage Specified over Temperature
• Excellent Load Regulation
• Specified 1-A Output Current
• Requires only One External Component
• Built-in Protection against Excess Temperature
• Short-Circuit Protected
Introduction of LM3940ISX-3.3/NOPB
• Laptop and Desktop Computers
• Logic Systems
