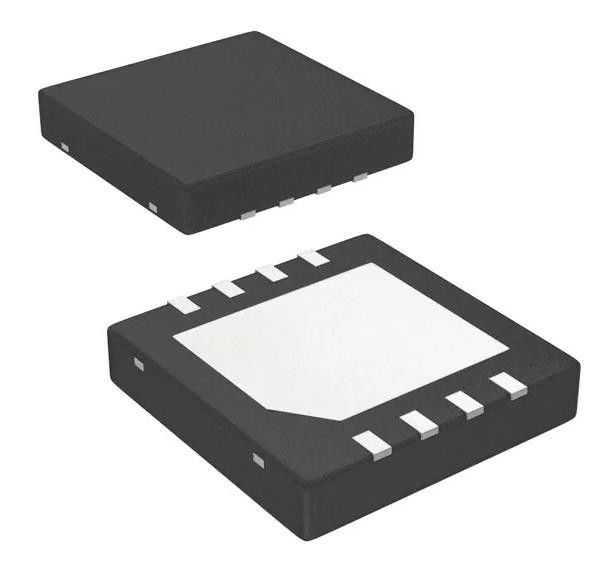

LM5007SD/NOPB Switching Regulator IC Positive Adjustable 2.5V 1 Output 500mA 8-WDFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5007SD/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 9V | Voltage - Input (Max): | 75V |
| Voltage - Output (Min/Fixed): | 2.5V | Voltage - Output (Max): | 73V |
| Current - Output: | 500mA | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | 8-WDFN LM5007SD/NOPB Switching Regulator IC,500mA LM5007SD/NOPB Switching Regulator IC,LM5007SD/NOPB |
||
Product Description
LM5007SD/NOPB Switching Regulator IC Positive Adjustable 2.5V 1 Output 500mA 8-WDFN
Specifications of LM5007SD/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 75V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 73V |
| Current - Output | 500mA |
| Frequency - Switching | - |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
| Base Product Number | LM5007 |
Features of LM5007SD/NOPB
• Versatile Synchronous Buck DC/DC Converter
– Operating Input Voltage Range of 9 V to 75 V
– Integrated 80-V, 0.7-A N-Channel Buck Switch
– Internal High-Voltage VCC Regulator
– Adjustable Output Voltage
– High Efficiency Operation
• Adaptive Constant On-Time Control Architecture
– Ultra-Fast Transient Response
– No Control Loop Compensation Required
• Nearly Constant Switching Frequency
– PWM On-Time Varies Inversely with Input Voltage
• Precision 2.5-V Reference
• Low Input Quiescent Current
• Inherent Protection Features for Robust Design
– Intelligent Current Limit Protection
– VCC and Gate Drive UVLO Protection
– Thermal Shutdown Protection With Hysteresis
– External Shutdown Control
• 8-Pin VSSOP and WSON Packages
• Create a Custom Regulator Design Using WEBENCH® Power Designer
Introduction of LM5007SD/NOPB
• Non-Isolated DC/DC Buck Regulator
• Secondary High-Voltage Post Regulator
• 48-V Automotive Systems
