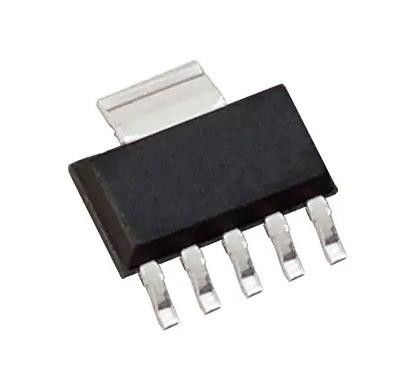

TL1963ADCQT Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A SOT-223-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL1963ADCQT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 20V | Voltage - Output (Min/Fixed): | 1.21V |
| Voltage - Output (Max): | 20V | Voltage Dropout (Max): | 0.55V @ 1.5A |
| Current - Output: | 1.5A | Current - Quiescent (Iq): | 1 MA |
| High Light: | Positive Voltage Regulator IC,SOT-223-6 Voltage Regulator IC,1 Output Voltage Regulator IC |
||
Product Description
TL1963ADCQT Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A SOT-223-6
Specifications of TL1963ADCQT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 1 mA |
| Current - Supply (Max) | 80 mA |
| PSRR | 63dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-6 |
| Base Product Number | TL1963 |
Features of TL1963ADCQT
* Optimized for Fast Transient Response
* Output Current: 1.5 A
* Dropout Voltage: 340 mV
* Low Noise: 40 VRms (10 Hz to 100 kHz)
* 1-mA Quiescent Current
* No Protection Diodes Needed
* Controlled Quiescent Current in Dropout
* Fixed Output Voltages: 1.5 V, 1.8 V, 2.5 V, 3.3 V
* Adjustable Output from 1.21 V to 20 V (TL1963AOnly)
* Less Than 1-A Quiescent Current in Shutdown
* Stable With 10-pF Ceramic Output Capacitor
* Reverse-Battery Protection
* Reverse-Current Protection
Introduction of TL1963ADCQT
* Industrial
* Wireless Infrastructure
* Radio-Frequency Systems
* 3.3-V to 2.5-V Logic Power Supplies
* Post Regulator for Switching Supplies
