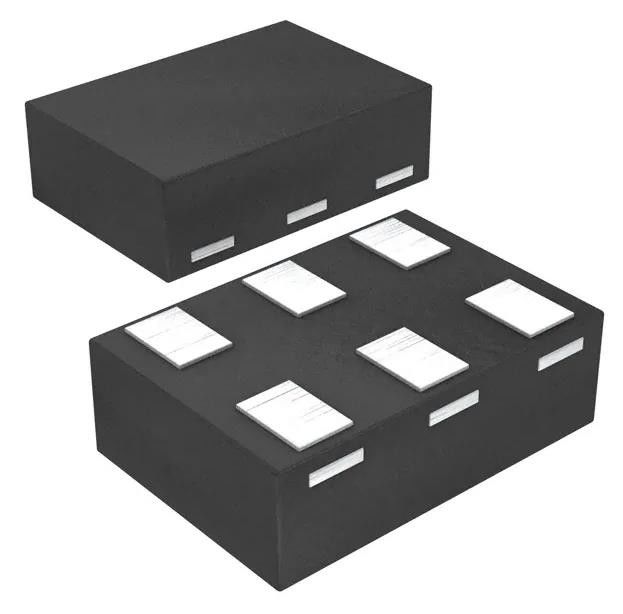

TPS62231DRYT Switching Regulator IC Positive Fixed 1.8V 1 Output 500mA 6-UFDFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62231DRYT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 2.05V | Voltage - Input (Max): | 6V |
| Voltage - Output (Min/Fixed): | 1.8V | Current - Output: | 500mA |
| Frequency - Switching: | 3MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | 6-UFDFN TPS62231DRYT Switching Regulator IC,1.8V TPS62231DRYT Switching Regulator IC,500mA TPS62231DRYT Switching Regulator IC |
||
Product Description
TPS62231DRYT Switching Regulator IC Positive Fixed 1.8V 1 Output 500mA 6-UFDFN
Specifications of TPS62231DRYT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.05V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Current - Output | 500mA |
| Frequency - Switching | 3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-SON (1.45x1) |
| Base Product Number | TPS62231 |
Features of TPS62231DRYT
• 2 MHz / 3 MHz Switching Frequency
• Up to 94% Efficiency
• Output Peak Current up to 500 mA
• Operating Junction Temperature of –40°C to 125°C
• High PSRR (up to 90 dB)
• Small External Output Filter Components 1 μH and 4.7 μF
• VIN range from 2.05 V to 6 V
• Optimized Power-Save Mode for Low Output Ripple Voltage
• Forced PWM Mode Operation
• Typ. 22-μA Quiescent Current
• 100% Duty Cycle for Lowest Dropout
• Small 1-mm × 1.5-mm × 0.6-mm USON Package
• 12-mm2 Minimum Solution Size
• Supports 0.6-mm Maximum Solution Height
Introduction of TPS62231DRYT
• LDO Replacement
• Portable Audio, Portable Media
• Low Power Wireless
• Low Power DSP Core Supply
• Digital Cameras
