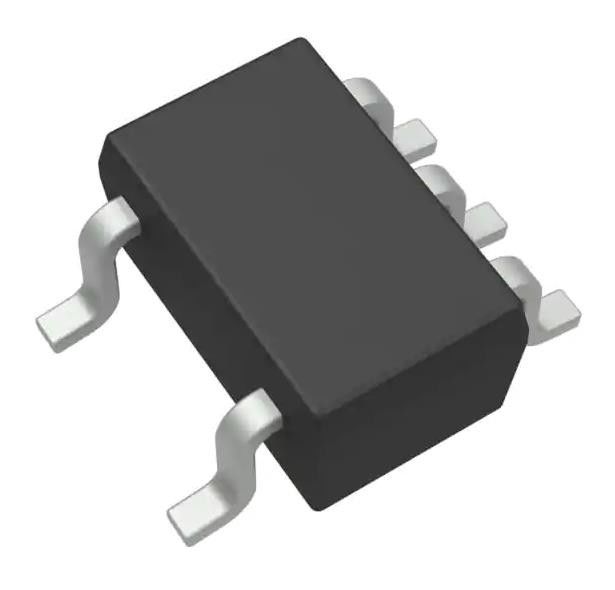

TPS71725DCKR Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SC-70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS71725DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 6.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 2.5V | Voltage Dropout (Max): | 0.3V @ 150mA |
| Current - Output: | 150mA | Current - Quiescent (Iq): | 80 µA |
| Current - Supply (Max): | 100 µA | PSRR: | 70dB ~ 45dB (100Hz ~ 1MHz) |
| High Light: | Positive Fixed Voltage Regulator IC,150mA Voltage Regulator IC,1 Output Voltage Regulator IC |
||
Product Description
LM22670MR-ADJ/NOPB Switching Regulator IC Positive Adjustable 1.285V 1 Output 3A
Specifications of TPS71725DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.3V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 80 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 70dB ~ 45dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | TPS717 |
Features of TPS71725DCKR
• Input Voltage: 2.5 V to 6.5 V
• Available in Multiple Output Versions:
– Fixed Output with Voltages from 0.9 V to 5 V
– Adjustable Output Voltage from 0.9 V to 6.2 V
• Ultra-High PSRR:
– 70 dB at 1 kHz, 67 dB at 100 kHz, and 45 dB at 1 MHz
• Excellent Load and Line Transient Response
• Very Low Dropout: 170 mV typical at 150 mA
• Low Noise: 30 μVRMS typical (100 Hz to 100 kHz)
• Small 5-pin SC-70, 2-mm × 2-mm WSON-6, and 1.5-mm × 1.5-mm WSON-6 Packages
Applications of TPS71725DCKR
• Camera Sensor Power
• Mobile Phone Handsets
• PDAs and Smartphones
• Wireless LAN, Bluetooth®
