LM22670MR-ADJ/NOPB Switching Regulator IC Positive Adjustable 1.285V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM22670MR-ADJ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 42V |
| Voltage - Output (Min/Fixed): | 1.285V | Voltage - Output (Max): | 37V |
| Current - Output: | 3A | Frequency - Switching: | 500kHz |
| High Light: | 1.285V LM22670MR-ADJ/NOPB Switching Regulator IC,Adjustable LM22670MR-ADJ/NOPB Switching Regulator IC,Positive LM22670MR-ADJ/NOPB Switching Regulator IC |
||
Product Description

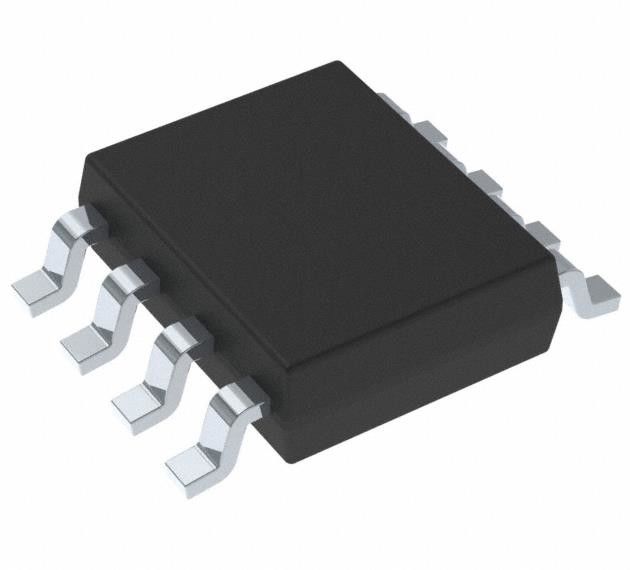

LM22670MR-ADJ/NOPB Switching Regulator IC Positive Adjustable 1.285V 1 Output 3A
Specifications of LM22670MR-ADJ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tube |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 1.285V |
| Voltage - Output (Max) | 37V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | LM22670 |
Features of LM22670MR-ADJ/NOPB
* Wide Input Voltage Range: 4.5 V to 42 V
* Internally Compensated Voltage Mode Control
* Stable With LOW ESR Ceramic Capacitors
* 120-mQ N-channel MOSFET PFM Package
* 100-mQ N-channel MOSFET SO Power PADTM-8Package
* Output Voltage Options:-ADJ (Outputs as Low as 1.285 V)-5.0 (Output Fixed to 5 V)
* +1.5% Feedback Reference Accuracy
* 500-kHz Default Switching Frequency
* Adjustable Switching Frequency and Synchronization
* -40°C to 125°C Operating Junction TemperatureRange
* Precision Enable Pin
* Integrated Boot-Strap Diode
* Integrated Soft-Start
* Fully WEBENCH Enabled
* LM22670-Q1 is an Automotive-Grade Productthat is AEC-Q100 Grade 1 Qualified (-40C to+125°C Operating Junction Temperature)
Applications of LM22670MR-ADJ/NOPB
* Industrial Control
* Telecom and Datacom Systems
* Embedded Systems
* Conversions from Standard 24-V, 12-V and 5-VInput Rails
