TLV62585PDRLT Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV62585PDRLT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.5V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 5.5V | Current - Output: | 3A |
| Frequency - Switching: | 1.5MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | 1 Output TLV62585PDRLT Switching Regulator IC,Positive Adjustable TLV62585PDRLT Switching Regulator IC,3A TLV62585PDRLT Switching Regulator IC |
||
Product Description
TLV62585PDRLT Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A
Specifications of TLV62585PDRLT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 3A |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

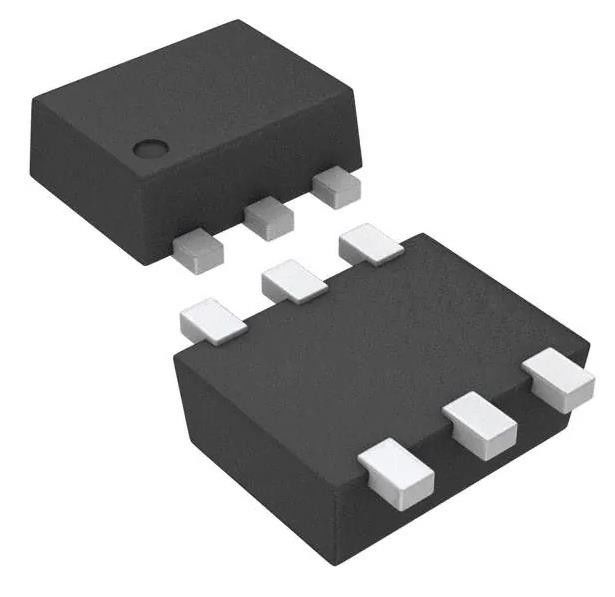

| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-5X3 |
| Base Product Number | TLV62585 |
Features of TLV62585PDRLT
• Up to 95% efficiency
• Low RDS(ON) power switches 56 mΩ / 32 mΩ
• 2.5-V to 5.5-V input voltage range
• Adjustable output voltage from 0.6-V to VIN
• Power save mode for light load efficiency
• 100% duty cycle for lowest dropout
• 35-μA operating quiescent current
• 1.5-MHz typical switching frequency
• Short circuit protection (HICCUP)
• Output discharge
• Power good output
• Thermal shutdown protection
• Available in 2-mm × 2-mm QFN or 1.6-mm x 1.6-mm SOT563 package
• Create a custom design using the TLV62585 with the WEBENCH® Power Designer
Introduction of TLV62585PDRLT
• General purpose point-of-load supply
• Battery-powered application
• Wireless router, solid state drive
• Set-top box, multi functional printer
• Motor control
