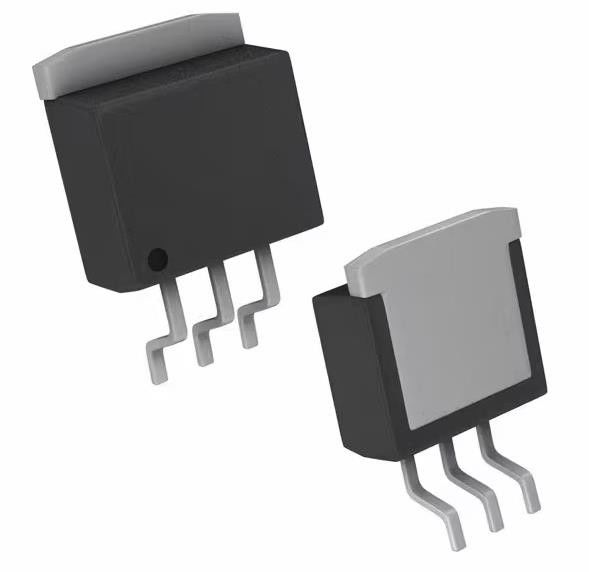

LM2937ESX-3.3/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DDPAK/TO-263-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2937ESX-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 26V | Voltage - Output (Min/Fixed): | 3.3V |
| Voltage Dropout (Max): | 1V @ 50mA | Current - Output: | 500mA |
| Current - Quiescent (Iq): | 2 MA | Current - Supply (Max): | 1.25 A |
| High Light: | Positive Fixed Voltage Regulator IC,500mA Voltage Regulator IC,1 Output Voltage Regulator IC |
||
Product Description
LM2575T-5.0/NOPB Switching Regulator IC Positive Fixed 5V 1 Output 1A TO-220-5
Specifications of LM2937ESX-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 50mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 2 mA |
| Current - Supply (Max) | 1.25 A |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK/TO-263-3 |
| Base Product Number | LM2937 |
Features of LM2937ESX-3.3/NOPB
* Fully Specified for Operation Over -40°C to 125°C
* Output Current in Excess of 500 mA
* Output Trimmed for 5% Tolerance Under allOperating Conditions
* Typical Dropout Voltage of 0.5 V at Full RatedLoad Current
* Wide Output Capacitor ESR Range, up to 3 Q
* Internal Short Circuit and Thermal OverloadProtection
* Reverse Battery Protection
* 60-V Input Transient Protection
* Mirror lmage Insertion Protection
Introduction of LM2937ESX-3.3/NOPB
* Automotive
* Industrial Control
* Point-of-Load regulation
