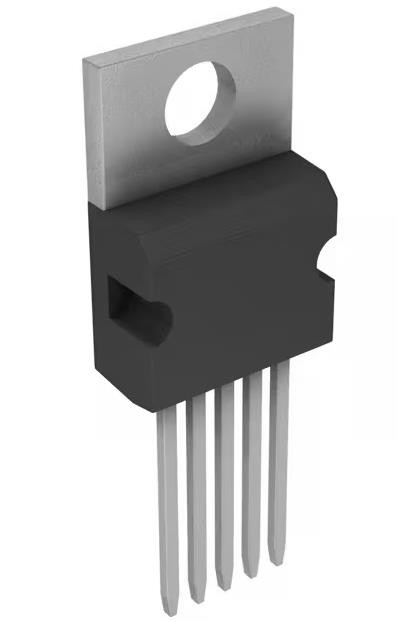

LM2575T-5.0/NOPB Switching Regulator IC Positive Fixed 5V 1 Output 1A TO-220-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2575T-5.0/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 4V |
|---|---|---|---|
| Voltage - Input (Max): | 40V | Voltage - Output (Min/Fixed): | 5V |
| Current - Output: | 1A | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | TO-220-5 LM2575T-5.0/NOPB Switching Regulator IC,5V LM2575T-5.0/NOPB Switching Regulator IC,1A LM2575T-5.0/NOPB Switching Regulator IC |
||
Product Description
LM2575T-5.0/NOPB Switching Regulator IC Positive Fixed 5V 1 Output 1A TO-220-5
Specifications of LM2575T-5.0/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tube |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 1A |
| Frequency - Switching | 52kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Base Product Number | LM2575 |
Features of LM2575T-5.0/NOPB
* 3.3V, 5V, 12V, 15V, and Adjustable OutputVersions
* Adjustable Version Output Voltage Range,
- 1.23V to 37V (57V for HV Version) 4%Max Over
- Line and Load Conditions
* Specified 1A Output Current
* Wide Input Voltage Range, 40V up to 60V forHV Version
* Requires Only 4 External Components
* 52 kHz Fixed Frequency Internal Oscillator
* TTL Shutdown Capability, Low Power StandbyMode
* High Efficiency
* Uses Readily Available Standard Inductors
* Thermal Shutdown and Current LimitProtection
* p+ Product Enhancement Tested
Introduction of LM2575T-5.0/NOPB
* Simple High-Efficiency Step-Down (Buck)Regulator
* Efficient Pre-Regulator for Linear Regulators
* On-Card Switching Regulators
* Positive to Negative Converter (Buck-Boost)
