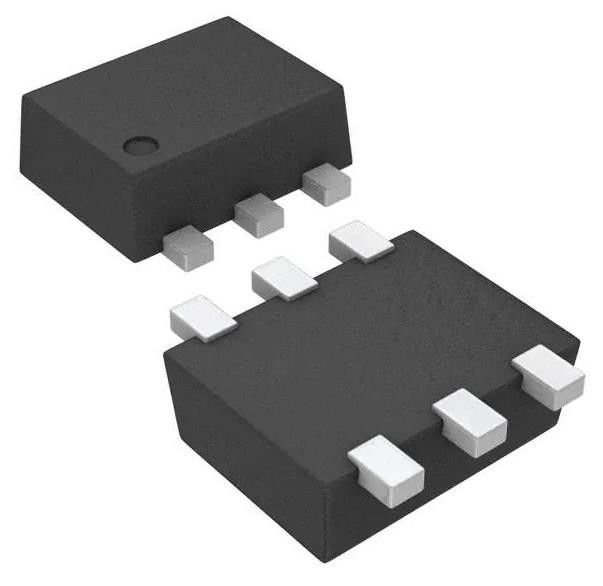

TLV62585PDRLR Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A SOT-563
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV62585PDRLR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Output Phases: | 1 |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd): | 4.5V ~ 38V | Frequency - Switching: | 50kHz ~ 1MHz |
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 150°C (TJ) |
| High Light: | 1 Output TLV62585PDRLR Switching Regulator IC,3A TLV62585PDRLR Switching Regulator IC,Positive Adjustable TLV62585PDRLR Switching Regulator IC |
||
Product Description
TLV62585PDRLR Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A SOT-563
Specifications of TLV62585PDRLR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 50kHz ~ 1MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Base Product Number | TPS43061 |
Features of TLV62585PDRLR
• 58-V Maximum Output Voltage
• 4.5 to 38 V (40 V Absolute Max) VIN Range
• TPS43060: 7.5-V Gate Drive Optimized for Standard Threshold MOSFETs
• TPS43061: 5.5-V Gate Drive Optimized for Low Qg NexFET™ Power MOSFETs
• Current-Mode Control With Internal Slope Compensation
• Adjustable Frequency from 50 kHz to 1 MHz
• Synchronization Capability to External Clock
• Adjustable Soft-Start Time
• Inductor DCR or Resistor Current Sensing
• Output Voltage Power-Good Indicator
• ±0.8% Feedback Reference Voltage
• 5-µA Shutdown Supply Current
• 600-µA Operating Quiescent Current
• Integrated Bootstrap Diode (TPS43061)
• Cycle-by-Cycle Current Limit and Thermal Shutdown
• Adjustable Undervoltage Lockout (UVLO) and Output Overvoltage Protection
• Small 16-Pin WQFN (3 mm × 3 mm) Package With PowerPAD™
• –40°C to 150°C Operating TJ Range
Introduction of TLV62585PDRLR
• Thunderbolt Port for PCs
• Automotive Power Systems
• Synchronous Flyback
• GaN RF Power Amplifiers
• Tablet Computer Accessories
• Battery-Powered Systems
• 5-V, 12-V, and 24-V DC Bus Power Systems
