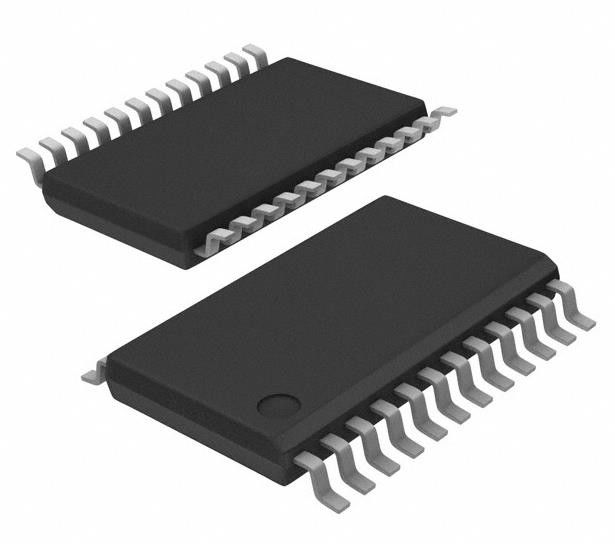

TCA9548APWR Bus Switch 1 x 8:1 24-TSSOP Single Supply 1.65V ~ 5.5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TCA9548APWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Circuit: | 1 X 8:1 | Independent Circuits: | 1 |
|---|---|---|---|
| Voltage Supply Source: | Single Supply | Voltage - Supply: | 1.65V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 24-TSSOP (0.173", 4.40mm Width) |
| High Light: | Single Supply TCA9548APWR Bus Switch,1.65V 5.5V TCA9548APWR Bus Switch,24-TSSOP TCA9548APWR Bus Switch |
||
Product Description
TCA9548APWR Bus Switch 1 x 8:1 24-TSSOP Single Supply 1.65V ~ 5.5V
Specifications of TCA9548APWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Mfr | Texas Instruments |
| Series | TCA |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Type | Bus Switch |
| Circuit | 1 x 8:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Base Product Number | TCA9548 |
Features of TCA9548APWR
* Highest Signaling Rate: 1 Mbps
* Low Power Consumption, Typical Icc per Channel(3.3-V operation):- ISO7420: 1.1 mA, ISO7421: 1.5 mA
* Low Propagation Delay - 9 ns TypicalLow Skew - 300 ps Typical
* Wide TA Range: -40'C to 125'C (M-Grade)
* 50-kV/us Transient lmmunity, Typical
* Over 25-Year lsolation Integrity at Rated Voltage
* Operates From 3.3-V and 5-V Supply and LogicLevels
* 3.3-V and 5-V Level Translation
* Narrow Body SOlC-8 Package
* Safety and Regulatory Approvals:4242 Vek lsolation per DIN V VDE V 0884-10and DIN EN 61010-12500 VRms lsolation for 1 minute per UL 1577CSAComponent Acceptance Notice 5A, IEC60950-1 and IEC 61010-1 StandardsCQC Certification per GB4943.1-2011
Introduction of TCA9548APWR
• Servers
• Routers (telecom switching equipment)
• Factory Automation
• Products with I2C slave address conflicts (such as multiple, identical temperature sensors)
