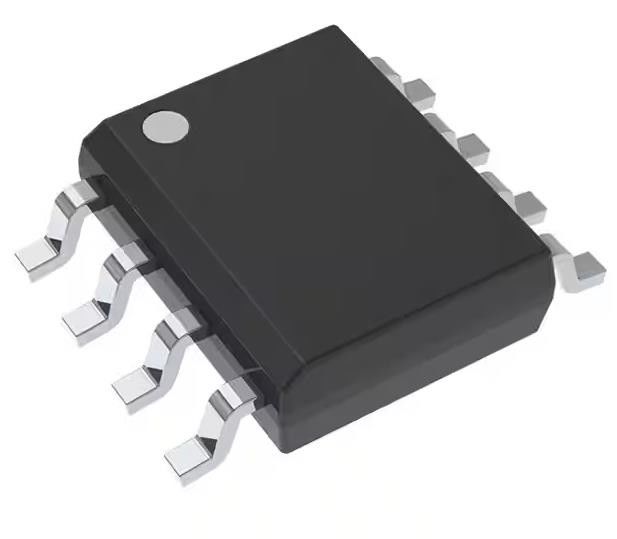

ISO7420DR General Purpose Digital Isolator 2500Vrms 2 Channel 1Mbps 25kV/µs
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO7420DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 2 | Inputs - Side 1/Side 2: | 2/0 |
|---|---|---|---|
| Channel Type: | Unidirectional | Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs | Data Rate: | 1Mbps |
| High Light: | 2500Vrms Purpose Digital Isolator,1Mbps Purpose Digital Isolator,2 Channel Purpose Digital Isolator |
||
Product Description
ISO7420DR General Purpose Digital Isolator 2500Vrms 2 Channel 1Mbps 25kV/µs
Specifications of ISO7420DR
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 14ns, 14ns |
| Pulse Width Distortion (Max) | 3.7ns |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Voltage - Supply | 3.15V ~ 3.45V, 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ISO7420 |
Features of ISO7420DR
* Highest Signaling Rate: 1 Mbps
* Low Power Consumption, Typical Icc per Channel(3.3-V operation):- ISO7420: 1.1 mA, ISO7421: 1.5 mA
* Low Propagation Delay - 9 ns TypicalLow Skew - 300 ps Typical
* Wide TA Range: -40'C to 125'C (M-Grade)
* 50-kV/us Transient lmmunity, Typical
* Over 25-Year lsolation Integrity at Rated Voltage
* Operates From 3.3-V and 5-V Supply and LogicLevels
* 3.3-V and 5-V Level Translation
* Narrow Body SOlC-8 Package
* Safety and Regulatory Approvals:4242 Vek lsolation per DIN V VDE V 0884-10and DIN EN 61010-12500 VRms lsolation for 1 minute per UL 1577CSAComponent Acceptance Notice 5A, IEC60950-1 and IEC 61010-1 StandardsCQC Certification per GB4943.1-2011
Introduction of ISO7420DR
* Optocoupler Replacement in:
- Industrial Fieldbus
- Profibus
- Modbus
- DeviceNettm Data Buses
- Servo Control Interface
- Motor Control
- Power Supplies
- Battery Packs
