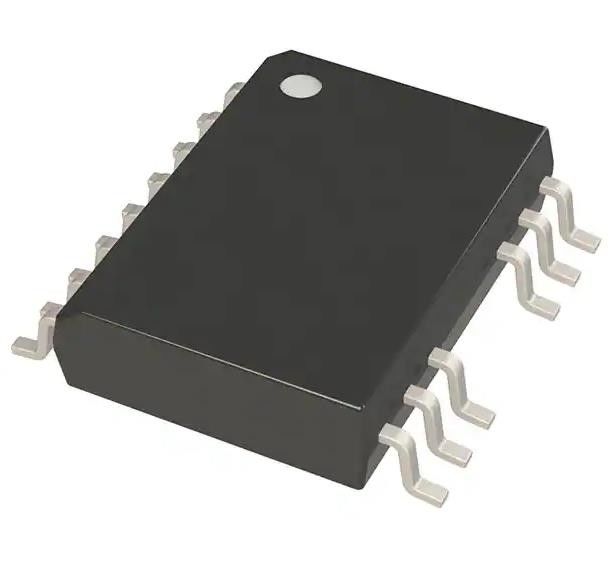

UCC21530BQDWKRQ1 4A 6A Gate Driver Capacitive Coupling 5700Vrms 2 Channel
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCC21530BQDWKRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 2 | Voltage - Isolation: | 5700Vrms |
|---|---|---|---|
| Common Mode Transient Immunity (Min): | 100V/ns | Propagation Delay TpLH / TpHL (Max): | 30ns, 30ns |
| Pulse Width Distortion (Max): | 6ns | Rise / Fall Time (Typ): | 6ns, 7ns |
| High Light: | 6A UCC21530BQDWKRQ1 Gate Driver,2 Channel UCC21530BQDWKRQ1 Gate Driver,4A UCC21530BQDWKRQ1 Gate Driver |
||
Product Description
UCC21530BQDWKRQ1 4A, 6A Gate Driver Capacitive Coupling 5700Vrms 2 Channel
Specifications of UCC21530BQDWKRQ1
| TYPE | DESCRIPTION |
| Category | Isolators |
| Isolators - Gate Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, Functional Safety (FuSa) |
| Package | Tape & Reel (TR) |
| Technology | Capacitive Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A, 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 14.7V ~ 25V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Approval Agency | CQC, CSA, UL, VDE |
| Base Product Number | UCC21530 |
Features of UCC21530BQDWKRQ1
• AEC-Q100 qualified with:
– Device temperature grade 1
– Device HBM ESD classification level H2
– Device CDM ESD classification level C6
• Functional Safety Quality-Managed
– Documentation available to aid functional safety system design
• Universal: dual low-side, dual high-side or halfbridge driver
• Wide body SOIC-14 (DWK) package
• 3.3-mm spacing between driver channels
• Switching parameters:
– 19-ns typical propagation delay
– 10-ns minimum pulse width
– 5-ns maximum delay matching
– 6-ns maximum pulse-width distortion
• Common-mode transient immunity (CMTI) greater than 100-V/ns
• Isolation barrier life >40 years
• 4-A peak source, 6-A peak sink output
• TTL and CMOS compatible inputs
• 3-V to 18-V input VCCI range
• Up to 25-V VDD output drive supply
– 8-V and 12-V VDD UVLO options
• Programmable overlap and dead time
• Rejects input pulses and noise transients shorter than 5 ns
• Operating temperature range –40 to +125°C
• Safety-related certifications:
– 8000-VPK isolation per DIN V VDE V 0884-11 :2017-01
– 5.7-kVRMS isolation for 1 minute per UL 1577
– CSA certification per IEC 60950-1, IEC 62368-1, IEC 61010-1 and IEC 60601-1 end equipment standards
– CQC certification per GB4943.1-2011
Introduction of UCC21530BQDWKRQ1
• HEV and BEV battery chargers
• Solar string and central inverters
• AC-to-DC and DC-to-DC charging piles
• AC inverter and servo drive
• AC-to-DC and DC-to-DC power delivery
• Energy storage systems
