TPS24740RGER Hot Swap Controller, OR Controller 1 Channel General Purpose
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS24740RGER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Internal Switch(s): | No |
|---|---|---|---|
| 2.5V ~ 18V: | 2.5V ~ 18VVoltage - Supply | Operating Temperature: | -40°C ~ 125°C |
| Current - Supply: | 4.2 MA | Supplier Device Package: | 24-VQFN (4x4) |
| High Light: | 1 Channel TPS24740RGER Hot Swap Controller,General Purpose Hot Swap Controller,TPS24740RGER |
||
Product Description
TPS24740RGER Hot Swap Controller, OR Controller 1 Channel General Purpose
Specifications of TPS24740RGER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Hot Swap Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Hot Swap Controller, OR Controller |
| Number of Channels | 1 |
| Internal Switch(s) | No |
| Applications | General Purpose |
| Features | Latched Fault, UVLO |
| Programmable Features | Current Limit, Fault Timeout, OVP, Turn On Voltage |
| Voltage - Supply | 2.5V ~ 18V |
| Current - Output (Max) | - |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 4.2 mA |
| Mounting Type | Surface Mount |

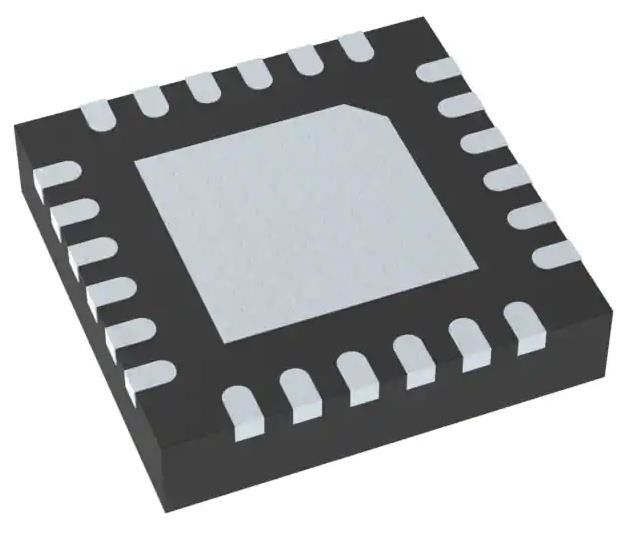

| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | TPS24740 |
Features of TPS24740RGER
* 2.5V to 18V Bus Operation (30V abs max)
* Programmable Protection Settings:
- Current Limit: +5% at 10mV
- Fast Trip: +10% at 20mV
- Reverse Voltage: +1mV at -1 mVProgramable Response Time for Fast Trip andReverse Voltage
* Programmable FET SOA Protection
* Dual Timer (lnrush/Fault)
* Interchangeable Hot Swap and ORing
* Analog Current Monitor (1% at 25mV)
* Status Flags for Faults and Power Good
* UV and OV Protection
* Independent EN for Hot Swap and ORing
* 4mm * 4mm 24-pin QFN
* 40 = Latch, 41 = Retry, 42 = Fast Latch Off
Introduction of TPS24740RGER
* Enterprise Storage
* Power Muxing
* Redundant Power Supplies
* Battery Back Up
