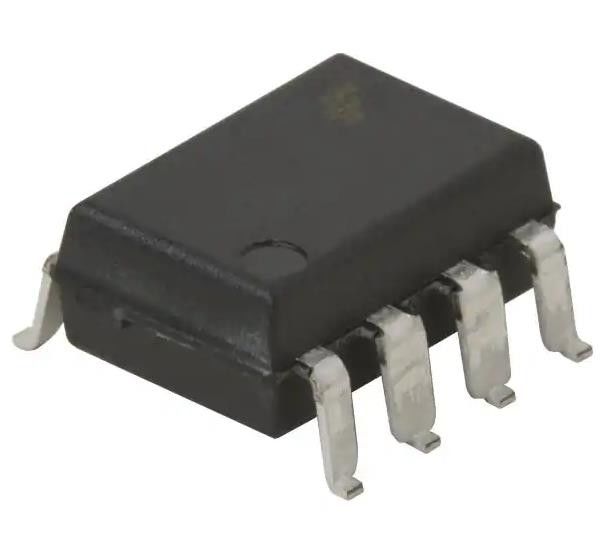

FOD3150ASD 3A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FOD3150ASD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 5000Vrms |
|---|---|---|---|
| Common Mode Transient Immunity (Min): | 20kV/µs | Propagation Delay TpLH / TpHL (Max): | 500ns, 500ns |
| Pulse Width Distortion (Max): | 300ns | Rise / Fall Time (Typ): | 60ns, 60ns |
| Current - Output High, Low: | 2A, 2A | Current - Peak Output: | 3A |
| High Light: | FOD3150ASD Gate Driver,FOD3150ASD,1 Channel Gate Driver |
||
Product Description
FOD3150ASD 3A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD
Specifications of FOD3150ASD
| TYPE | DESCRIPTION |
| Category | Isolators |
| Isolators - Gate Drivers | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 3A |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Approval Agency | UL |
| Base Product Number | FOD3150 |
Features of FOD3150ASD
• High Noise Immunity characterized by 20 kV/s minimum Common Mode Rejection
• Use of P−channel MOSFETs at Output Stage Enables Output Voltage Swing close to the Supply Rail
• Wide Supply Voltage Range from 15 V to 30 V
• Fast Switching Speed
♦ 500 ns maximum Propagation Delay
♦ 300 ns maximum Pulse Width Distortion
• Under Voltage LockOut (UVLO) with Hysteresis
• Extended Industrial Temperate Range, −40°C to 100°C Temperature Range
• Safety and Regulatory Approvals
♦ UL1577, 5000 VRMS for 1 minute
♦ DIN EN/IEC60747−5−2
• >8.0 mm Clearance and Creepage Distance (Option ‘T’)
• This is a Pb−Free Device
Introduction of FOD3150ASD
• Industrial Inverter
• Uninterruptible Power Supply
• Induction Heating
• Isolated IGBT/Power MOSFET Gate Drive
