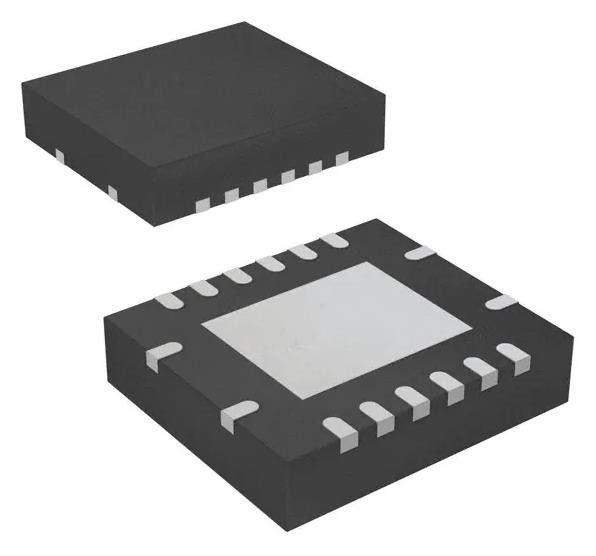

74AVC4T245QRGYRQ1 Translation Transceiver 2 Element 2 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 74AVC4T245QRGYRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Translation Transceiver | Number Of Elements: | 2 |
|---|---|---|---|
| Number Of Bits Per Element: | 2 | Output Type: | 3-State |
| Current - Output High, Low: | 12mA, 12mA | Voltage - Supply: | 0.8V ~ 3.6V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Supplier Device Package: | 16-VQFN (4x3.5) |
| High Light: | 2 Element 74AVC4T245QRGYRQ1 Translation Transceiver,3-State 74AVC4T245QRGYRQ1 Translation Transceiver,2 Bit 74AVC4T245QRGYRQ1 Translation Transceiver |
||
Product Description
74AVC4T245QRGYRQ1 Translation Transceiver 2 Element 2 Bit per Element 3-State
Specifications of 74AVC4T245QRGYRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, 74AVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Translation Transceiver |
| Number of Elements | 2 |
| Number of Bits per Element | 2 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 0.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (4x3.5) |
| Base Product Number | 74AVC4T245 |
Features of 74AVC4T245QRGYRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level H3B (JESD 22 A114-A)
– Device CDM ESD Classification Level C5 (JESD 22 C101)
• Control Input VIH and VIL Levels Are Referenced to VCCA Voltage
• Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2-V to 3.6-V Power-Supply Range
• I/Os Are 4.6-V Tolerant
• Ioff Supports Partial Power-Down-Mode Operation
• Maximum Data Rates
– 380 Mbps (1.8-V to 3.3-V Translation)
– 200 Mbps (<1.8-V to 3.3-V Translation)
– 200 Mbps (Translate to 2.5 V or 1.8 V)
– 150 Mbps (Translate to 1.5 V)
– 100 Mbps (Translate to 1.2 V)
• Latch-Up Performance Exceeds 100 mA per JESD 78, Class II
Introduction of 74AVC4T245QRGYRQ1
• Telematics
• Cluster
• Head Unit
• Navigation Systems
