6PAIC3109TRHBRQ1 Audio Interface 16 b, 20 b, 24 b, 32 b I²C, I²S 32-VQFN (5x5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 6PAIC3109TRHBRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Audio | Data Interface: | I²C, I²S |
|---|---|---|---|
| Resolution (Bits): | 16 B, 20 B, 24 B, 32 B | Sigma Delta: | Yes |
| S/N Ratio, ADCs / DACs (db) Typ: | 92 / 102 | Dynamic Range, ADCs / DACs (db) Typ: | 93 / 97 |
| Voltage - Supply, Analog: | 2.7V ~ 3.6V | Voltage - Supply, Digital: | 1.1V ~ 3.6V |
| High Light: | 20 b 6PAIC3109TRHBRQ1 Audio Interface,32-VQFN 6PAIC3109TRHBRQ1 Audio Interface,24 b 6PAIC3109TRHBRQ1 Audio Interface |
||
Product Description

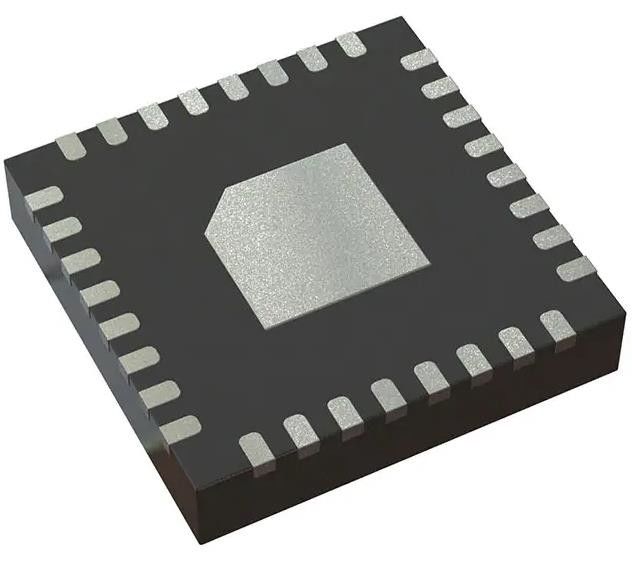

6PAIC3109TRHBRQ1 Audio Interface 16 b, 20 b, 24 b, 32 b I²C, I²S 32-VQFN (5x5)
Specifications of 6PAIC3109TRHBRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| CODECS | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Audio |
| Data Interface | I²C, I²S |
| Resolution (Bits) | 16 b, 20 b, 24 b, 32 b |
| Number of ADCs / DACs | 1/1 |
| Sigma Delta | Yes |
| S/N Ratio, ADCs / DACs (db) Typ | 92 / 102 |
| Dynamic Range, ADCs / DACs (db) Typ | 93 / 97 |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.1V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | 6PAIC3109 |
Features of 6PAIC3109TRHBRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Temperature Grade 2: –40°C to +105°C
– HBM ESD Classification 2
– CDM ESD Classification C4B
• Mono Audio DAC:
– 102-dBA Signal-to-Noise Ratio
– Supports Sample Rates From 8 kHz to 96 kHz
– 3D, Bass, Treble, EQ, or De-Emphasis Effects
• Mono Audio ADC:
– 92-dBA Signal-to-Noise Ratio
– Supports Sample Rates From 8 kHz to 96 kHz
– Digital Signal Processing and Noise Filtering
• Four Audio Input Pins:
– Up to Two Differential Inputs
– Up to Two Single-Ended Inputs
• Six Audio Output Drivers:
– One Fully Differential or Two Single-Ended Headphone Drivers
– Mono Pair of Fully-Differential Line Outputs
• Low Power: 14-mW Mono, 48-kHz Playback With 3.3-V Analog Supply
• Ultra-Low Power Mode With Passive Analog Bypass
• Front-End Programmable Gain Amplifier (PGA)
• Programmable Digital Gain for DAC Playback
• Automatic Gain Control (AGC) for Record
• Programmable Microphone Bias
• Programmable PLL for Flexible Clock Generation
• I2C Control Bus
• Audio Data Formats: I2S, Left- and Right-Justified,DSP, and TDM
• Power Supplies:
– Analog (AVDD, DRVDD): 2.7 V to 3.6 V
– Digital Core (DVDD): 1.525 V to 1.95 V
– Digital I/O (IOVDD): 1.1 V to 3.6 V
• Available in Two VQFN-32 Package Options:
– Non-Wettable (6PAIC3109TRHBRQ1)
– Wettable-Flank (6PAIC3109TWRHMRQ1
Introduction of 6PAIC3109TRHBRQ1
• Emergency Call (eCall) Systems
• Telematics Control Unit (TCU)
• Automotive Head Units
